Brady PermaSleeve HX Polyolefin Wire Marking Sleeve

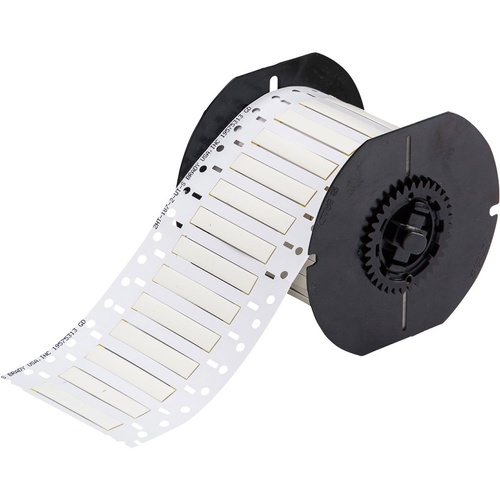

• Heat-Shrink PermaSleeve HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible. Supplied roll form in a flattened format on a carrier designed for use with computer driven printers.
• Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002.
• Tested per ASTM E162 and ASTM E662.
• Operating temperature of -40°F to 248°F (-40°C to 120°C).
• A ribbon is required to print this material.

Key Characteristics

• Brady Printer Material Number: B-7642
• Trade Name: PermaSleeve
• Finish: Matte

Material Characteristics

• Printer Material: Heat-shrink Polyolefin
• Material Properties: Heat-shrinkable
• Label Properties Heat Shrink
• Maximum Service Temperature (°C): 120 °C
• Minimum Service Temperature (°C): -40 °C
• Adhesive Type: Permanent Acrylic
• Average Outdoor Durability: Not Recommended

Compatibility

• Recommended Ribbon: B30-R4300
• Printer Compatibility: i3300, BBP33, i5300
• Continuous or Die-cut: Die-cut

Printing Specifications

• Print Technology: Thermal Transfer
• Resistance Properties: Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Self-Extinguishing, UV-Resistant, Weather-Resistant

Dimensions

• Thickness (mm): 0.081

Features

• Application: Electrical labelling, Wire and cable Labelling
• Indoor or Outdoor Use: Indoor Use
