Brady Raised Profile Rectangular Label

• Raised panel Adhesive-Taped Polyester (B-593) labels are designed for patch panel identification, external push-buttons, switches and internal connection points.

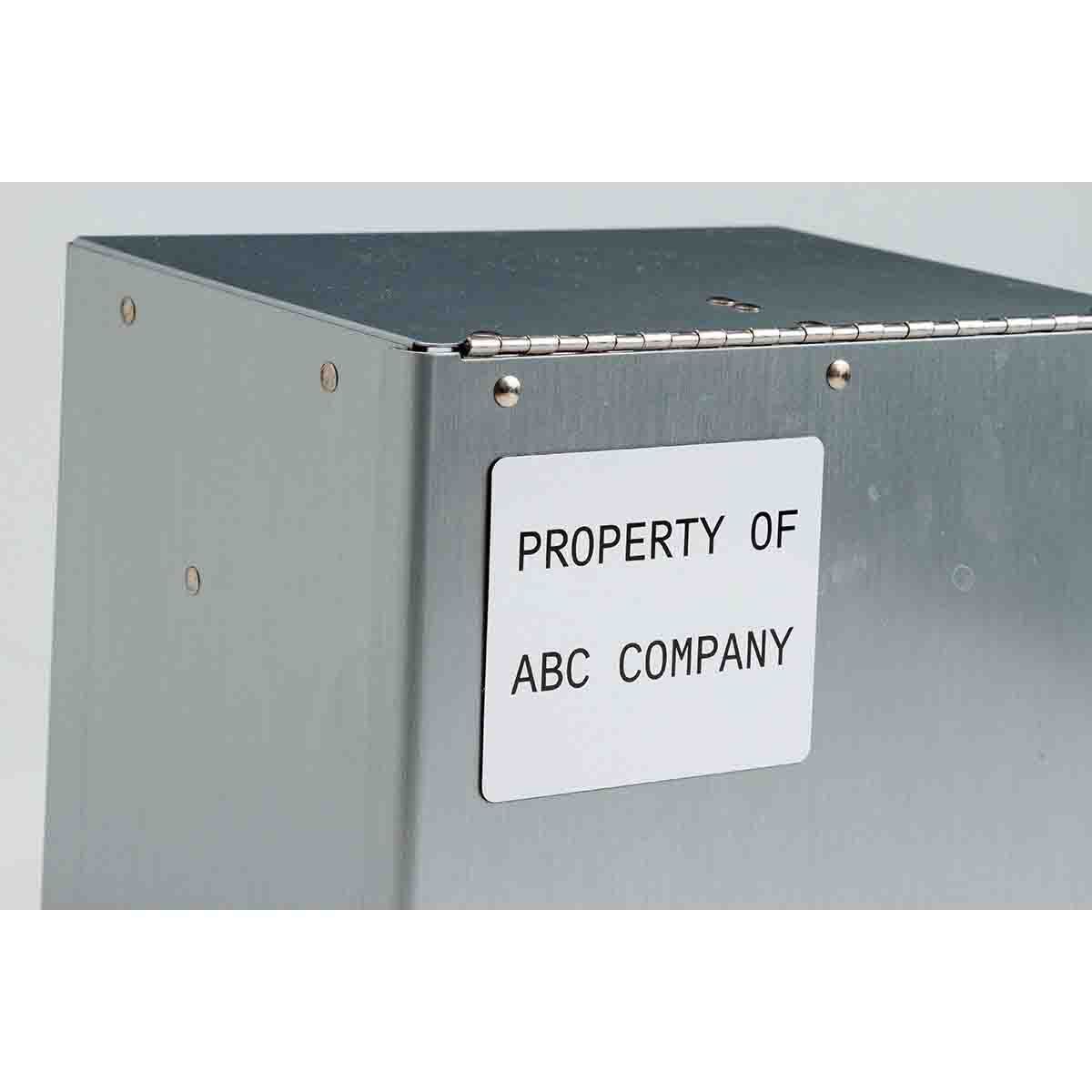

• Can be used as rating and serial plates using alphanumerics that require nameplate quality.
• Aggressive adhesive and solvent resistance makes them a great replacement for engraved tags.
• UL approved
• Service temperature of -4 to 212° F (-20 to 100° C).
• A ribbon is required to print this material.

Key Characteristics

• Industry: Buildings identification, Electrical, Manufacturing, Voice & data communication
• Brady Printer Material Number: B-593

Material Characteristics

• Printer Material: Polyester
• Material Properties: Raised
• Label Properties: Heat Resistant, Permanent Adhesive
• Maximum Service Temperature (°C): 100 °C
• Minimum Service Temperature (°C): -20 °C

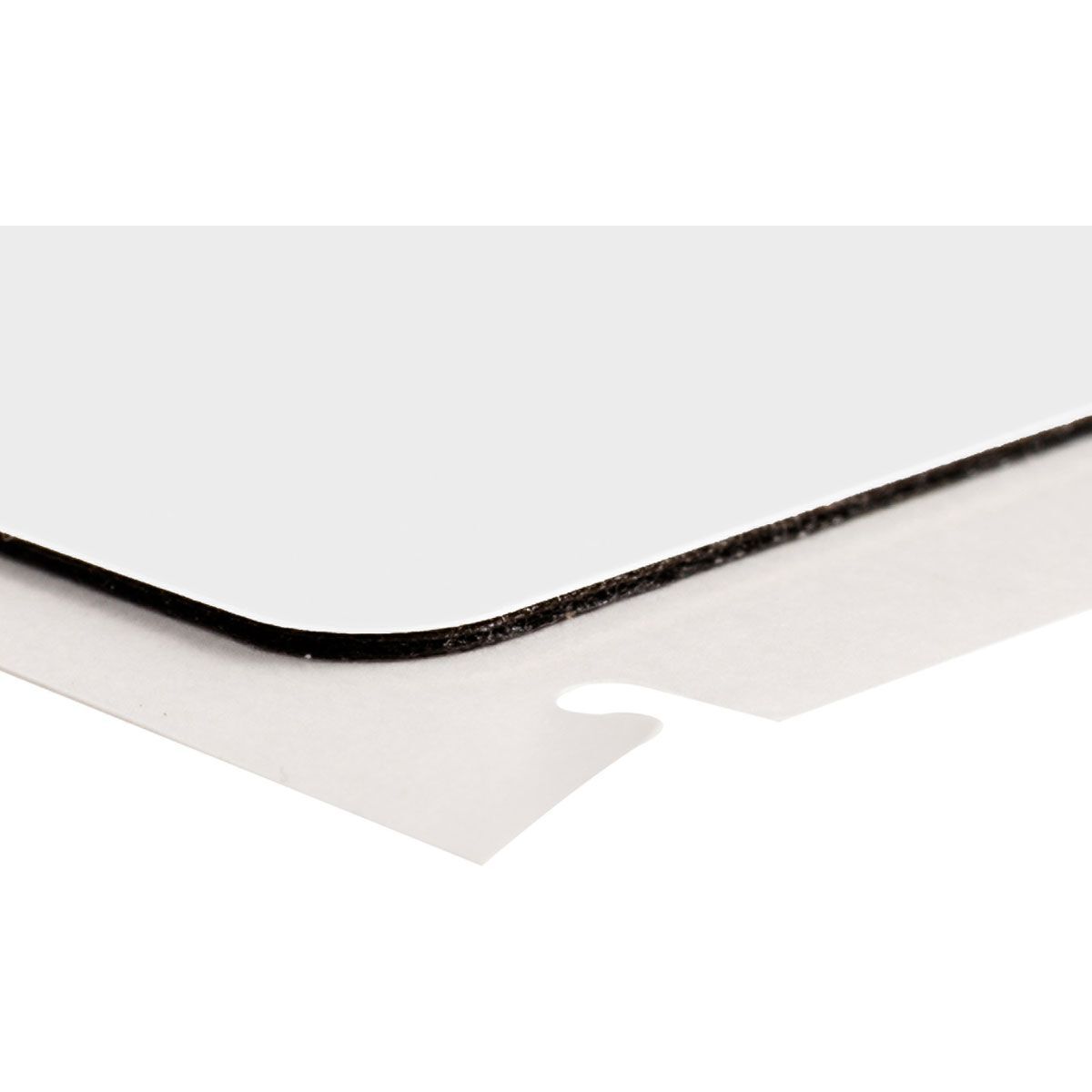

• Adhesive Type: Permanent Acrylic - Foam Backed
• Average Outdoor Durability: 10 Years

Compatibility

• Printer Compatibility: BBP35, BBP37, S3100, BBP31, i3300, BBP33, BBP30, S3700, S3000, i5300
• Continuous or Die-cut: Die-cut
• Compatible Surface Types High Surface Energy

Printing Specifications

• Print Technology: Thermal Transfer
• Resistance Properties: Abrasion-Resistant, Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant
• Corner Type: Rounded Corners

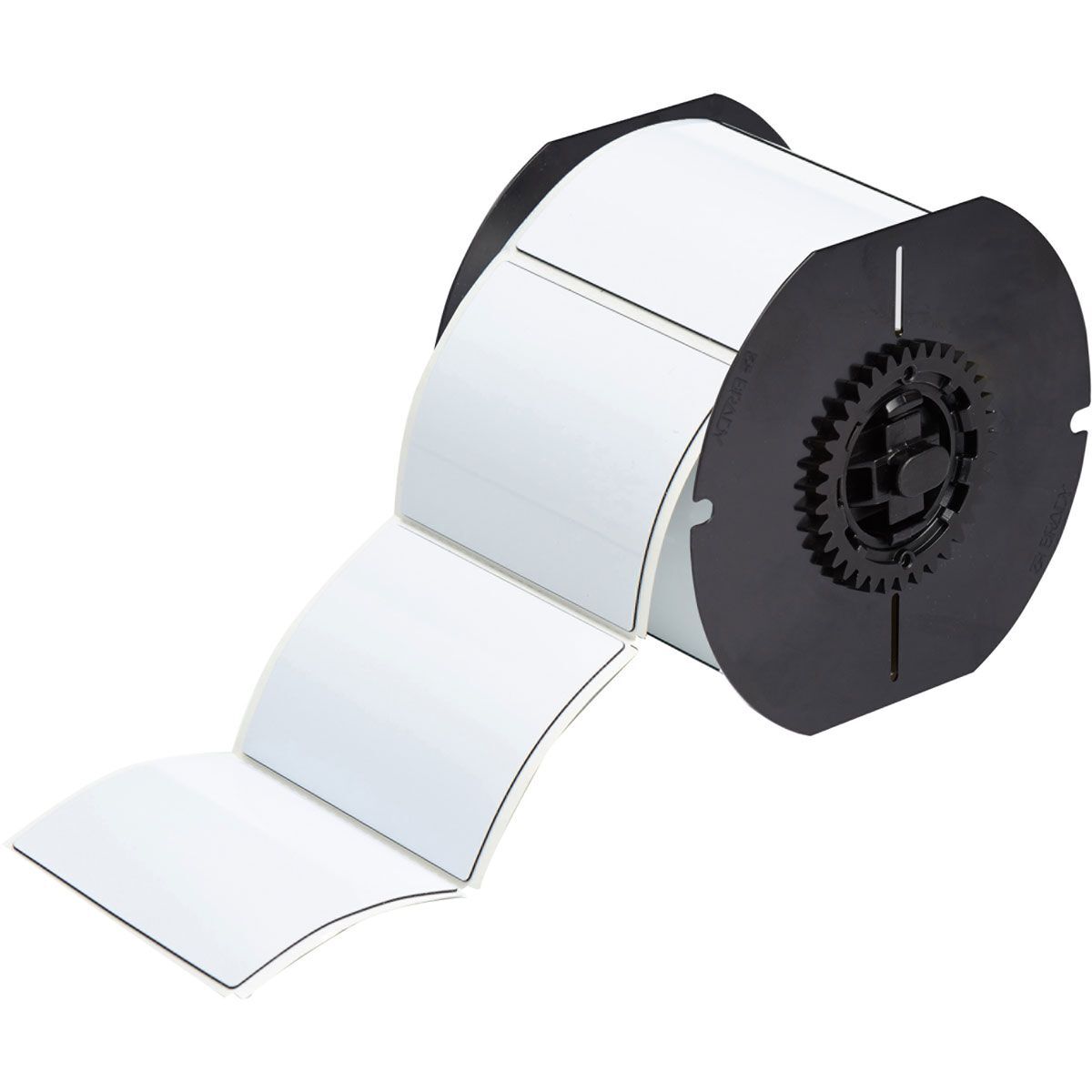

• Printer supply or Pre-printed: Printer supply

Dimensions

• Thickness (mm): 0.65
• Hole Inside Diameter (mm): 22.5

Features

• Application: Electrical labelling
• Printer and Label Applications: Electrical
• Indoor or Outdoor Use: Outdoor Use
• Smart Cell: Yes
• Shape: Rectangle
