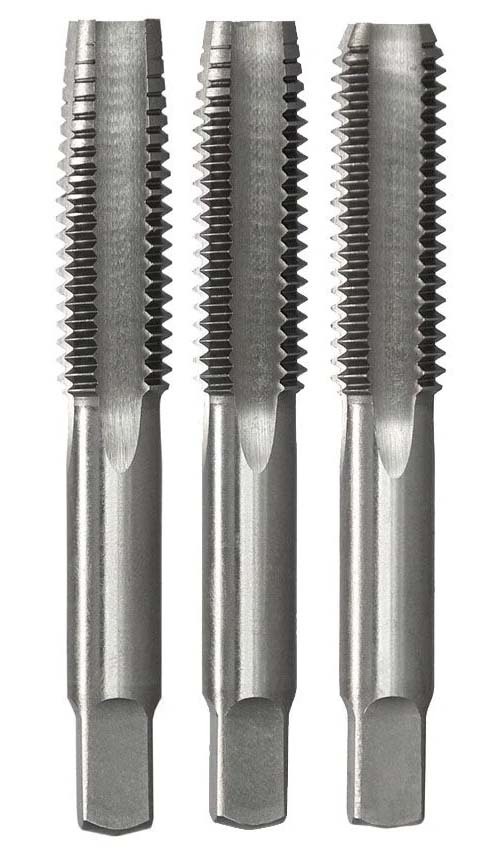

Bordo BSW Chrome Alloy Hand Tap Set

• Chrome Alloy BSW Hand Tap Set.
• Used as thread chasers to clean an existing thread.
• They can also be used to create a new female thread in non-ferrous metals and plastics.
• Chrome alloy taps are not suitable for creating precision, safety or critical threads.
• British Standard Whitworth has a thread angle of 55 degrees as opposed to 60 degrees in Metric and Unified threads.
• This thread form was developed by Sir Joseph Whitworth in 1841.
• The thread form has rounded roots and crests and is specified in BS84:1956.
• The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
• Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
• Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
• Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
• Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.

About BSW (British Standard Whitworth)

• This thread form was developed by Sir Joseph Whitworth in 1841.
• The thread form has rounded roots and crests and is specified in BS84:1956.
• The thread angle for BSW is 55° as opposed to 60° in Metric and Unified threads.
