Bordo HSS Cobalt Metric Coarse Spiral Point Tap (3120)1
Bordo 3 x 0.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-3.00
Bordo 3.5 x 0.6mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-3.50
Bordo 4 x 0.7mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-4.00
Bordo 5 x 0.8mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-5.00
Bordo 6 x 1mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-6.00
Bordo 7 x 1mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-7.00
Bordo 8 x 1.25mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-8.00
Bordo 9 x 1.25mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-9.00
Bordo 10 x 1.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-10.00
Bordo 11 x 1.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-11.00
Bordo 12 x 1.75mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-12.00
Bordo 14 x 2mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-14.00
Bordo 16 x 2mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-16.00
Bordo 18 x 2.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-18.00
Bordo 20 x 2.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-20.00
Bordo 22 x 2.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-22.00
Bordo 24 x 3mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-24.00
Bordo 27 x 3mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-27.00
Bordo 30 x 3.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-30.00
Bordo 33 x 3.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-33.00
Bordo 36 x 4mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-36.00
Bordo HSS Cobalt Metric Coarse Spiral Point Tap (3120)1
Bordo 3 x 0.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-3.00
Bordo 3.5 x 0.6mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-3.50
Bordo 4 x 0.7mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-4.00
Bordo 5 x 0.8mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-5.00
Bordo 6 x 1mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-6.00
Bordo 7 x 1mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-7.00
Bordo 8 x 1.25mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-8.00
Bordo 9 x 1.25mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-9.00
Bordo 10 x 1.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-10.00
Bordo 11 x 1.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-11.00
Bordo 12 x 1.75mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-12.00
Bordo 14 x 2mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-14.00
Bordo 16 x 2mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-16.00
Bordo 18 x 2.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-18.00
Bordo 20 x 2.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-20.00
Bordo 22 x 2.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-22.00
Bordo 24 x 3mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-24.00
Bordo 27 x 3mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-27.00
Bordo 30 x 3.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-30.00
Bordo 33 x 3.5mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-33.00
Bordo 36 x 4mm HSS Cobalt Metric Coarse Spiral Point Tap - 3120-36.00

Bordo HSS Cobalt Metric Coarse Spiral Point Tap (3120)

Bordo HSS Cobalt Metric Coarse Spiral Point Tap (3120)

SKU: A0202997

Type: Spiral Point Tap

$733.45
$733.45
Inc. GST

Available

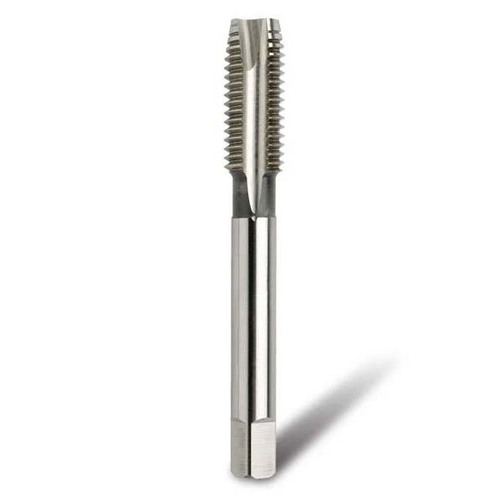

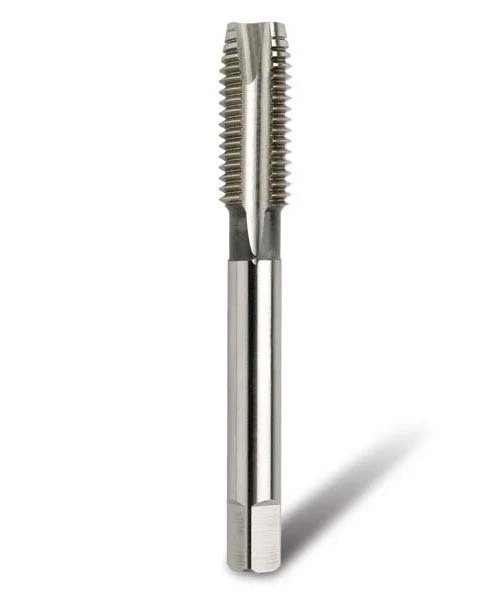

The Bordo HSS Cobalt Metric Coarse Spiral Point Tap (3120) by Bordo is a Spiral Point Tap manufactured from HSS-Co5 (Cobalt) steel. It provides a 60° angle of thread and is suitable for use in through holes.
Buy Now

Resources

Bordo HSS Cobalt Metric Coarse Spiral Point Tap (3120)

  • HSS-Co5 (Cobalt) Metric Coarse Spiral Point (Gun Nose) machine tap.
  • Cobalt HSS taps are extremely hard and provide superior performance and increased tool life especially in stainless steel and high tensile steel.
  • Gun nose taps have straight flutes supplemented by angular cutting faces at the lead.
  • The design of the cutting portion propels the swarf ahead of the tap leaving the flutes clear for the flow of coolant to the cutting teeth.
  • Primarily designed for use in through holes, these taps can be used in blind holes provided that there is ample clearance beyond the threaded section to accommodate the swarf.
  • The advantages of a gun nose tap are the shearing action of the angular cutting faces, which produces a fine finish on the threads and shallower flutes.
  • This allows a stronger cross section throughout the tap.
  • Metric Coarse taps have a 60° angle of thread.
  • The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
  • Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
  • The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimeters).
