***Special Order. Contact AIMS for further assistance***

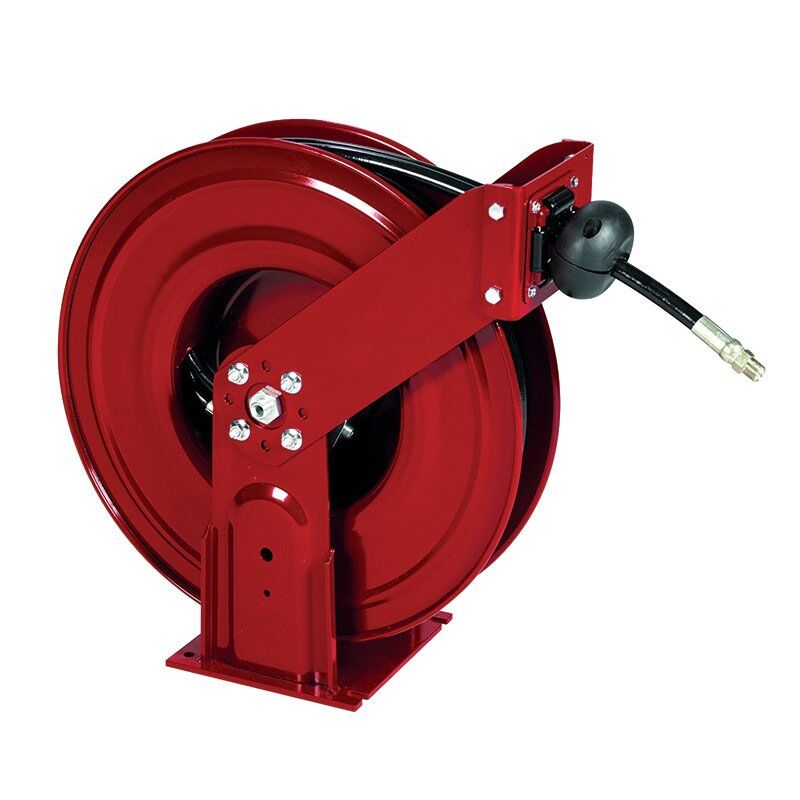

Alemite Open, Twin Pedestal Bare Oil Reel

• Alemite USA made
• Twin pedestal, heavy duty bare hose reel ideal for lube trucks
• Can take up to 15m x 1/2" ID R1 oil hose
• Narrow base (216mm wide) with slot mounting holes for easy installation
• Rated to 1,800psi
• Factory lubricated sealed 1 piece power spring cassette makes installation safer & maintenance easier
• Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel
• Removable rollers provide easy cleaning and service
• Heavy metal arbor design withstands extreme stress
• Five position guide arm provides versatile floor, wall and ceiling mounting and allows hose to release at optimum position
• The ratchet pawl cartridge allows for fast serviceability
