Description

AAP 90° Elbow Socket Weld

(High-Pressure Fittings)

  • Rating: Socketweld End – 3000lbs
  • Standards: ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

Specifications

  • AIMS SKU A0079411
  • Brand AAP
  • Model Number PE08S

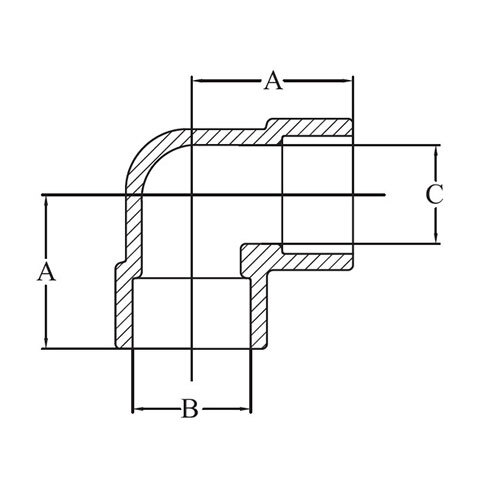

  • Socket Bore Diameter (B) 14.6
  • Approx. Kg/pc 0.08
  • B 14.2
  • C 8.5
  • Pipe Size (mm) 8
  • Bore Diameter Of Fittings ( C ) 10
  • Center To End (A) 20.5
  • Pipe Size (inch) 1/4
  • Type Socket Weld Elbow
  • Fitting Thread Form NPT
  • Specific Fitting Shape 90°
  • Pipe Fitting Connection Socket Weld
SKU: A0079411

AAP 1/4", 8mm 90° High Pressure Elbow Socket Weld PE08S

AAP - Socket Weld - 90° Elbow

$6.84
RRP $12.76
SAVE $5.92 (46%)
