AAP Brass Check Valve E-Type

AAP Brass Check Valve E-Type

SKU: A0080466

Type: E-Type Check Valve

$13.83
$13.83
Inc. GST

Available

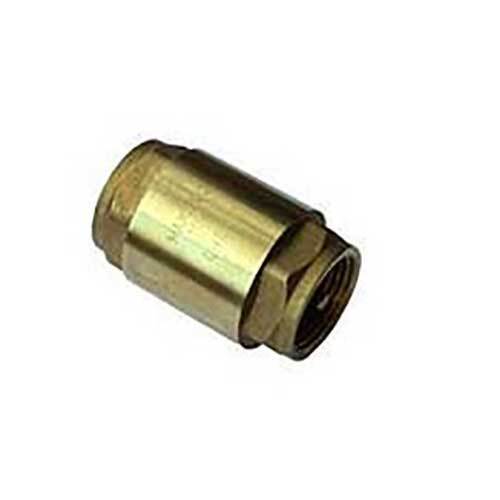

The AAP Brass Check Valve E-Type by AAP is a E-Type Check Valve with brass CW 617N body and stainless steel AISI 304 seat. It provides a working temperature range for Air -20°C to 110°C and is suitable for Hot/Coldwater.
Buy Now

Resources

AAP Brass Check Valve E-Type

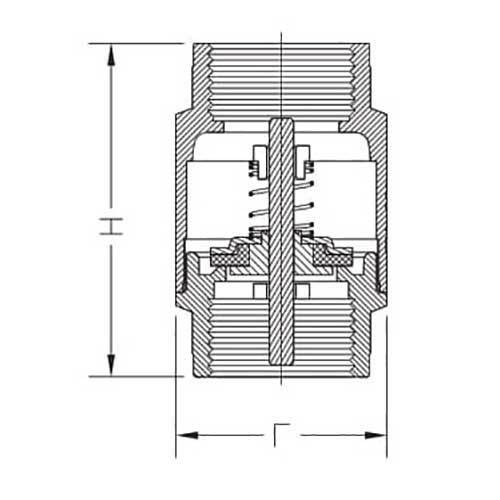

 Material List:

  • Body - Brass CW 617N
  • Internal Seat - Stainless Steel plate AISI 304 ?tted with   NBR 60 SH/A, Cover plate and rod in brass CW 614N
  • Spring - Stainless Steel AISI 302

Working Temperature:

  •  Air: -20¬∞C to 110¬∞C
  • Water: 0¬∞C to 90¬∞C
  • Gas: -20¬∞C to 60¬∞C

Application:

  • Can be ?tted in a horizontal, vertical, or oblique position. Suitable for Hot/Coldwater, Compressed Air, Oils
