Description
Description

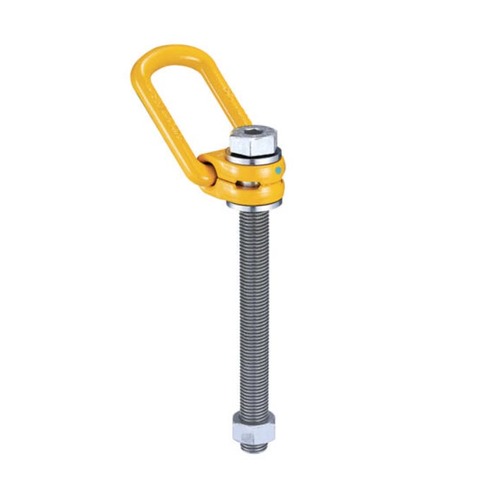

Yoke Swivel Lifting Point Long Thread
- Swivel Lifting Point Long Thread Yoke (Thread Length under Swivel).
- Rotates through 360° and pivot 90°
- Manufactured from forged alloy steel, quenched and tempered.
- Manufactired and tested in accordance with EN1677-1.
- Load rated parts are 100% magnaflux crack detected.
- Individual forged parts and cap screw are traceable to Test Certification.
- Bolts are Metric thread (ASME / ANSI B18.3.1.M).
- Proof tested to 2.5 times the WLL.
- Fatigue rated to 1.5 times the WLL.
- Meets or exceeds all the requirements of ASME B30.26.
- Quick and simple assembly just a tapped hole required.
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Yoke Swivel Lifting Point Long Thread Yoke
Yoke Swivel Lifting Point Long Thread Yoke
SKU: A0207252
Type: Lifting Point
- Wide Range
- Reliable Services
- Proven Trust
Available
The Yoke Swivel Lifting Point Long Thread Yoke by Yoke is a Lifting Point manufactured from forged alloy steel and quenched and tempered. It provides proof testing to 2.5 times the WLL and is suitable for Eye Nuts Bolts & Screws.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Yoke Swivel Lifting Point Long Thread
- Swivel Lifting Point Long Thread Yoke (Thread Length under Swivel).
- Rotates through 360° and pivot 90°
- Manufactured from forged alloy steel, quenched and tempered.
- Manufactired and tested in accordance with EN1677-1.
- Load rated parts are 100% magnaflux crack detected.
- Individual forged parts and cap screw are traceable to Test Certification.
- Bolts are Metric thread (ASME / ANSI B18.3.1.M).
- Proof tested to 2.5 times the WLL.
- Fatigue rated to 1.5 times the WLL.
- Meets or exceeds all the requirements of ASME B30.26.
- Quick and simple assembly just a tapped hole required.
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Yoke Swivel Lifting Point Long Thread Yoke
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Yoke Swivel Lifting Point Long Thread Yoke by Yoke is a Lifting Point manufactured from forged alloy steel and quenched and tempered. It provides proof testing to 2.5 times the WLL and is suitable for Eye Nuts Bolts & Screws. |
Regular price
From $174.52
Sale price
From $174.52
Regular price
Unit price
/per
| Yoke | Lifting Point |
WLL (T)
0.3,0.63,1,1.5,2.5,4,5,8,15,20
|
Choose your option
Yoke Swivel Lifting Point Long Thread Yoke
Yoke Swivel Lifting Point Long Thread Yoke
SKU: A0207252
Type: Lifting Point
Hurry up, only 20 items left in stock.
The Yoke Swivel Lifting Point Long Thread Yoke by Yoke is a Lifting Point manufactured from forged alloy steel and quenched and tempered. It provides proof testing to 2.5 times the WLL and is suitable for Eye Nuts Bolts & Screws.
