Yoke Lifting Point With Key 10mm x 0.4T WLL

Yoke Lifting Point With Key 12mm x 0.75T WLL

Yoke Lifting Point With Key 16mm x 1.5T WLL

Yoke Lifting Point With Key 20mm x 2.3T WLL

Yoke Lifting Point With Key 24mm x 3.2T WLL

Yoke Lifting Point With Key 30mm x 4.5T WLL

Yoke Lifting Point With Key 36mm x 7T WLL

Yoke Lifting Point With Key 42mm x 9T WLL

Yoke Lifting Point With Key 48mm x 12T WLL

Description +

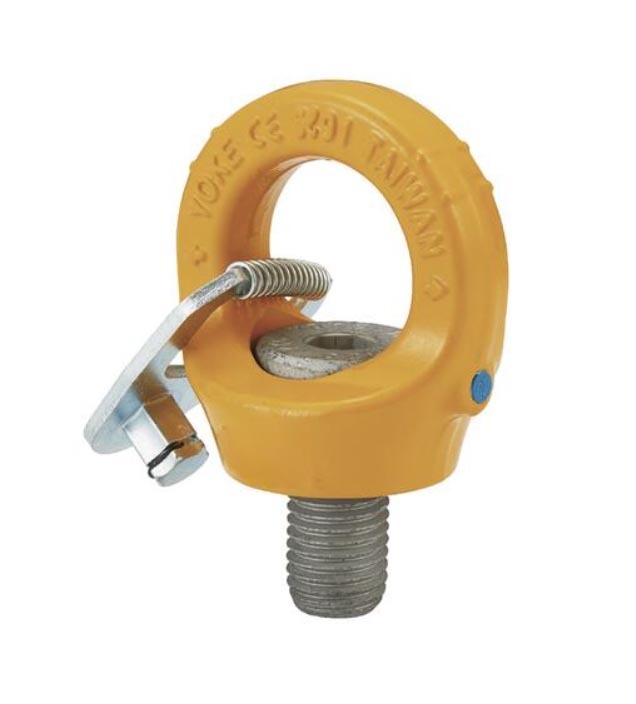

Yoke Lifting Point With Key

Rotates through 360° adjustable in the direction of the load.
Manufactured from alloy steel, quench and tempered.
Tested in accordance with EN1677-1.
Certified by DGUV GS-OS 15-04.
Load rated parts are 100% magnaflux crack detected.
Individual forged parts and cap screw are traceable to Test Certification.
Bolts are Metric head.
Proof tested to 2.5 times the WLL.
Fatgue rated to 20,000 cycles at 1.5 times the WLL.
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
Quick and simple assembly just a tapped hole required.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Yoke Lifting Point With Key

SKU: A0207237

Type: Lifting Point

$102.38

Inc. GST

Buy It Now

Available

The Yoke Lifting Point With Key by Yoke is a Lifting Point manufactured from heat treated quench and tempered alloy steel. It provides fatigue rating to 20,000 cycles at 1.5 times the WLL and is suitable for Eye Nuts Bolts & Screws.
