Yoke Lifting Point Key With Long Thread1

Yoke Lifting Point Key With Long Thread 10mm x 0.4T WLL

Yoke Lifting Point Key With Long Thread 12mm x 0.75T WLL

Yoke Lifting Point Key With Long Thread 16mm x 1.5T WLL

Yoke Lifting Point Key With Long Thread 20mm x 2.3T WLL

Yoke Lifting Point Key With Long Thread 24mm x 3.2T WLL

Yoke Lifting Point Key With Long Thread 30mm x 4.5T WLL

Yoke Lifting Point Key With Long Thread 36mm x 7T WLL

Description +

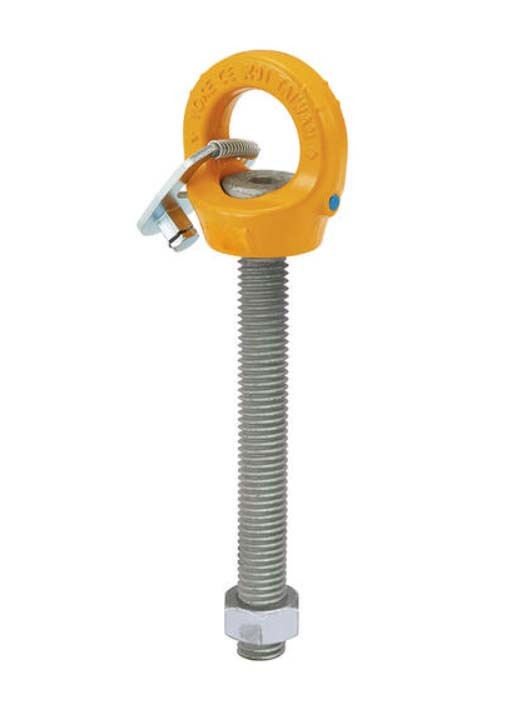

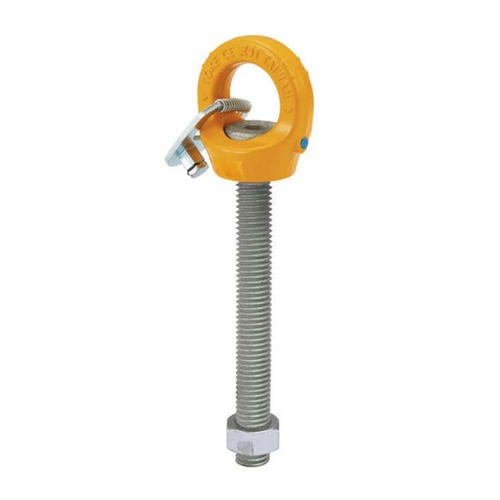

Yoke Lifting Point Key With Long Thread

Rotate through 360° adjustable in the direction of the load.
Manufactired from alloy steel, quenched and tempered.
Tested in accordance with EN1677-1
Certified by DGUV GS-OA 15-04.
Load rated parts are 100% magnaflux crack dtected.
Individual forged parts and cap screw are traceable to Test Certification.
Bolts are Matric thread.
Proof tested to 2.5 times the WLL.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
All YOKE lifting points meet or exceed all the requirements of ASME B30.26.
Quick and simple assembly, just tapped hole is reuired.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Yoke Lifting Point Key With Long Thread

SKU: A0207214

Type: Lifting Point

$143.18

Inc. GST

Buy It Now

Available

The Yoke Lifting Point Key With Long Thread by Yoke is a Lifting Point made from quenched and tempered alloy steel. It provides proof testing to 2.5 times the WLL and is suitable for Eye Nuts Bolts & Screws.
