M2 Wire Rope Thimble, 316 Stainless Steel - WRTA4M2

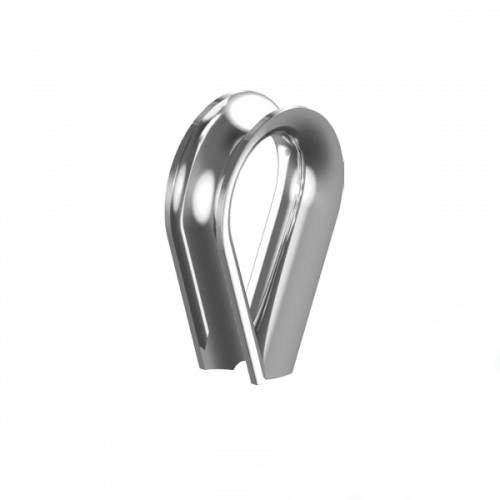

The Wire Rope Thimble, 316 Stainless Steel is available in 13 sizes (M2 to M20) and is a grooved metal liner that fits inside a rope or cable loop. It keeps the loop in shape and protects the wire from wear at the eye.

You can choose from 13 variants, covering sizes M2 to M20. Pack quantities depend on size: packs of 5 to 100.

Supplied in 316 (A4) stainless steel. The molybdenum in A4 gives better resistance to chlorides than A2 (304), so it is the usual choice near the coast, around pools and in marine and food-processing environments.

In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.

Where this product is used

• Marine rigging, boat and yacht fittings
• Coastal and architectural fittings
• Boat, jetty and waterfront structures
• Balustrade and wire fencing
• Architectural work near the coast

Features

• Keeps the loop shape under load
• Range covers M2 to M20 in 13 variants
• Protects the rope eye from wear and kinking
• Supplied in packs of 5 to 100
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings

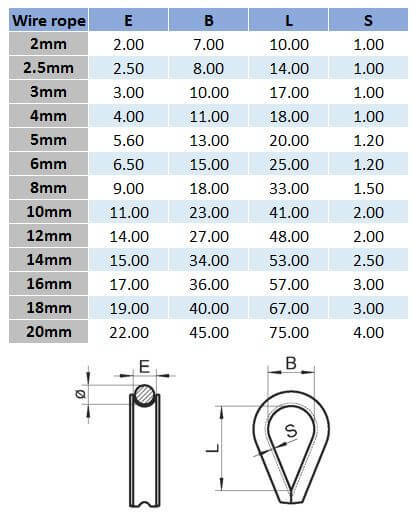

Key specifications

Selecting the right option

Choose the thimble by the wire rope diameter, which is shown on the variant.

Important

This product is not stated as lifting rated in the supplier data. Do not use it to lift or suspend people or loads unless it is marked with a working load limit (WLL). Rigging and lifting hardware should be selected, inspected and used in line with your site procedures and the relevant Australian Standards, and a qualified rigger should be consulted for any lift.
