Description

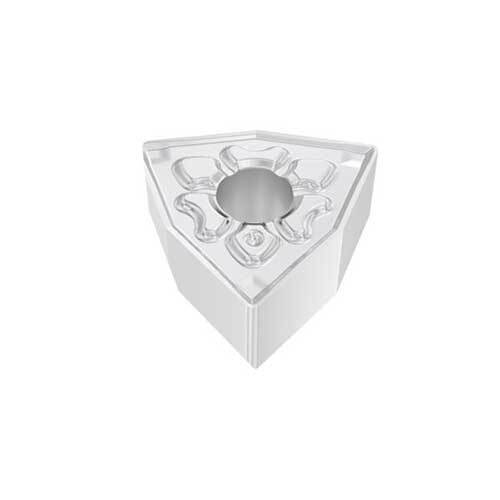

Turning Insert WNMG Insert Style - W-MF4 Grade TM1501

  • W shape code.
  • G insert type, with hole and chip breaker on both faces.

TM1501 Insert Grade

  • Duratomic® grade.
  • The highly resistant and optimized grade for many continuous cuts in stainless steel turning applications.
  • Complements in mixes of steel and stainless steel turning.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-MF4 Chipbreaker Prog.ramme

  • Easy cutting action chipbreaker for high feed machining of stainless steel.
  • Provides a good surface finish in finishing operations and high feed wiper productivity in medium-roughing machining.
  • Indicative machining range: f = 0,05-0,90 mm/rev, ap= 0,2 - 6,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158522
  • Brand Seco
  • Model Number 03277089
  • Net Weight (kg) 0.009

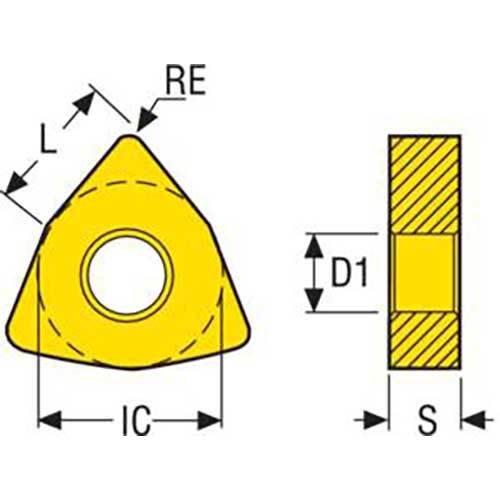

  • Designation WNMG080408W-MF4 TM1501
  • Chip Breaker Manufacturers Designation (CBMD) MF4
  • Fixing Hole Diameter (d1) Mm 5.2
  • Corner Radius (RE) mm 0.8
  • Insert Hand (IH) Neutral
  • Wiper Edge Property (WEP) 1
  • Clearance Angle Major (an) Deg 0.0 deg
  • Insert Thickness (S) mm 4.76
  • Insert Included Angle (EPSR) 80.0 deg
  • Insert Seat Size Code (SSC) mm 8
  • Theoretical Cutting Edge Length (L) mm 8.69
  • Inscribed Circle Diameter (IC) mm 12.7
  • Cutting Edge Effective Length (LE) mm 8.3
  • Cutting Edge Count (CEDC) 6
  • Type Turning Insert
  • Grade Type Carbide CVD
  • Grade TM1501
SKU: A0158522

Seco Turning Insert W Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - W-MF4 Grade TM1501 WNMG080408W-MF4 Pack of 10

Turning Insert WNMG Insert Style - W-MF4 Grade TM1501

$290.76
