Description

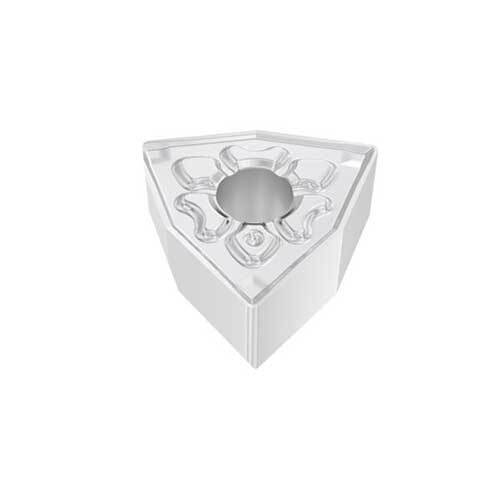

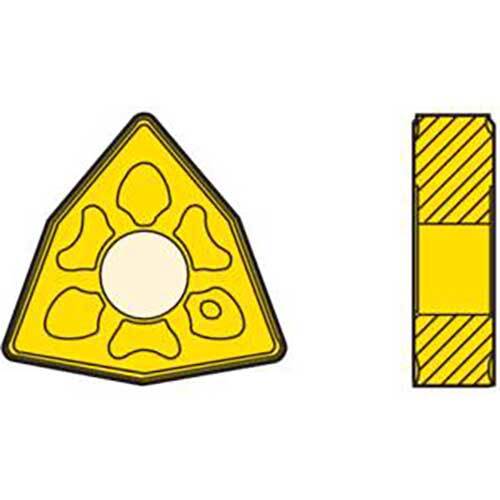

Turning Insert WNMG Insert Style - MF4 Grade TM2501

  • W shape code.
  • G insert type, with hole and chip breaker on both faces.

TM2501 Insert Grade

  • Duratomic® grade.
  • A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness.
  • First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF4 Chipbreaker Programme

  • Chipbreaker intended for medium/finishing of stainless steel, very open and highly positive geometry.
  • Indicative machining range: f = 0,15–0,50 mm/rev, ap = 0,5–4,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158516
  • Brand Seco
  • Model Number 03276718
  • Net Weight (kg) 0.009
  • Designation WNMG080404-MF4 TM2501
  • Chip Breaker Manufacturers Designation (CBMD) MF4

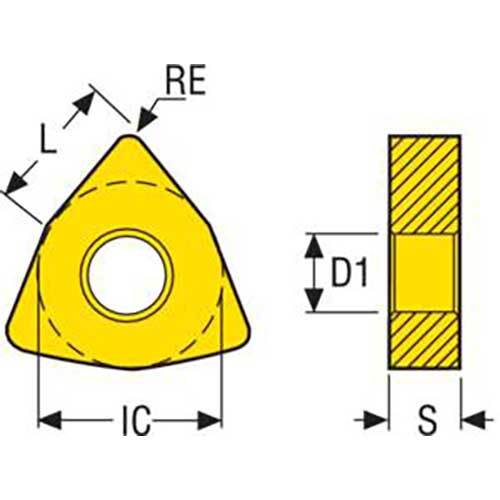

  • Fixing Hole Diameter (d1) Mm 5.2
  • Corner Radius (RE) mm 0.4
  • Insert Hand (IH) Neutral
  • Clearance Angle Major (an) Deg 0.0 deg
  • Insert Thickness (S) mm 4.76
  • Insert Included Angle (EPSR) 80.0 deg
  • Insert Seat Size Code (SSC) mm 8
  • Theoretical Cutting Edge Length (L) mm 8.69
  • Inscribed Circle Diameter (IC) mm 12.7
  • Cutting Edge Effective Length (LE) mm 8.54
  • Cutting Edge Count (CEDC) 6
  • Type Turning Insert
  • Grade Type Carbide CVD
  • Grade TM2501
SKU: A0158516

Seco Turning Insert W Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - MF4 Grade TM2501 WNMG080404-MF4 Pack of 10

Turning Insert WNMG Insert Style - MF4 Grade TM2501

$249.78
