Description

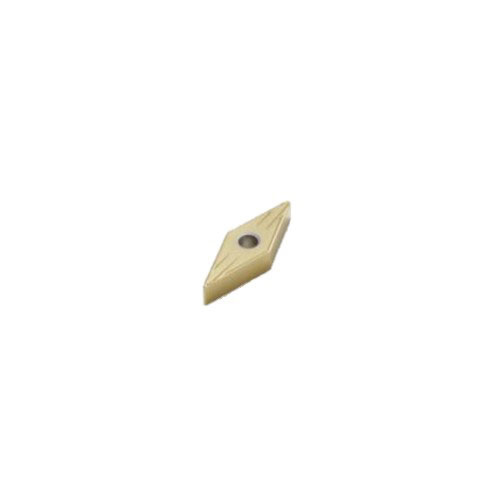

Turning Insert VNMG Insert Style - FF2 Grade CP500

  • V shape code.
  • G insert type, with hole and chip breaker on both faces.
  • CP500 insert grade.

CP500 Insert Grade

  • Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys. Especially suitable in intermittent cuts.
  • (Ti, Al)N + TiN.

FF2 Chipbreaker Programme

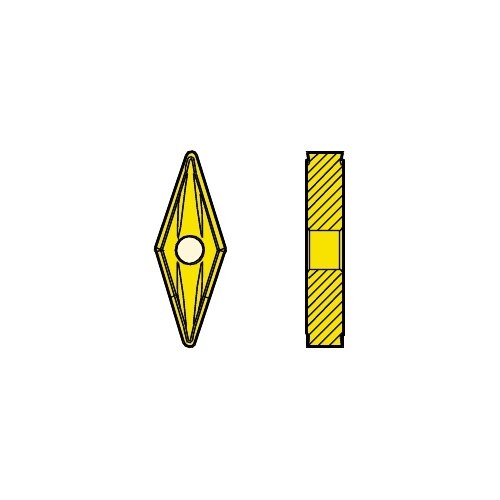

  • Chipbreaker for negative inserts. Intended for fine-finishing and semi-finishing of steels and stainless steels.
  • The positive, tight chip groove offers light cutting action combined with superior chip forming.
  • Indicative machining range: f = 0,08–0,30 mm/rev, ap = 0,2–1,5 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116832
  • Brand Seco
  • Model Number 2787032
  • Barcode Number 87032027000502
  • Designation VNMG160402-FF2 CP500
  • Grade CP500

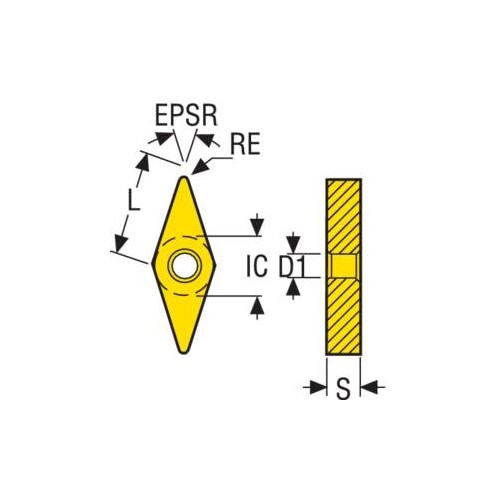

  • Theoretical Cutting Edge Length (L) mm 16.6
  • Clearance Angle Major (an) Deg 0.0 deg
  • Corner Radius (RE) mm 0.2
  • Insert Included Angle (epsr) Deg 35.0 deg
  • Inscribed Circle Diameter (IC) mm 9.53
  • Insert Thickness (S) mm 4.76
  • Chipbreaker Programme FF2
  • Fixing Hole Diameter (d1) Mm 3.8
  • Insert Shape Code (SC) V
  • Type Turning Insert
  • Insert Style VNMG
  • Insert Grade Grade CP500
SKU: A0116832

Seco Turning Insert V Shape Code 4.76 x 0.2 x 9.53mm G Insert Type - FF2 Grade CP500 ± 0.13/± 0.05mm Tolerance VNMG160402-FF2,CP500 - Pack of 5

Turning Insert VNMG Insert Style - FF2 Grade CP500

$177.32
