Description

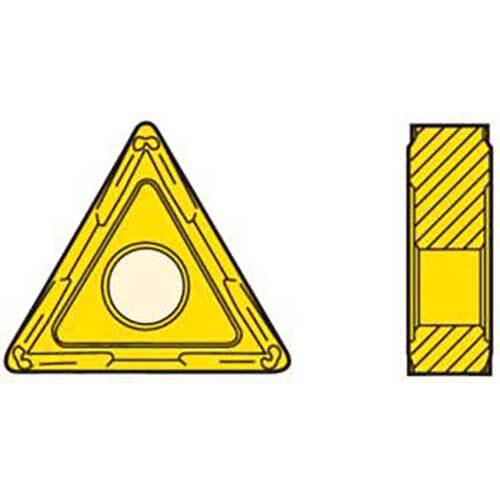

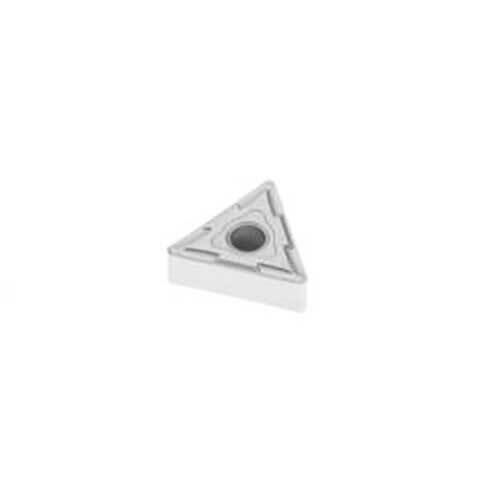

Turning Insert TNMG Insert Style - MF2 Grade TP25

  • T shape code
  • G insert type, with hole and chip breaker on both faces.

TP25 Insert Grade

  • The universal grade for highly versatile performance over a wide range of applications in steels, stainless steels, and cast irons.
  • Trustworthy alternative at limited cutting speeds or high surface finishes requirements.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF2 Chipbreaker Programme

  • First choice for finishing with negative inserts.
  • Suitable for chip control at depths of cutting down to 0,25 mm, provided that the feed rate is in excess of 0,25 mm/rev.
  • Good capacity for medium rough machining.
  • Indicative machining range: f = 0,10–0,40 mm/rev, ap = 0,2–3,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158462
  • Brand Seco
  • Model Number 03276672
  • Net Weight (kg) 0.007
  • Designation TNMG160408-MF2 TP25
  • Chip Breaker Manufacturers Designation (CBMD) MF2
  • Fixing Hole Diameter (d1) Mm 3.8
  • Corner Radius (RE) mm 0.8
  • Insert Hand (IH) Neutral
  • Clearance Angle Major (an) Deg 0.0 deg
  • Insert Thickness (S) mm 4.76
  • Insert Included Angle (EPSR) 60.0 deg
  • Insert Seat Size Code (SSC) mm 16
  • Theoretical Cutting Edge Length (L) mm 16.53
  • Inscribed Circle Diameter (IC) mm 9.53
  • Cutting Edge Effective Length (LE) mm 14.54
  • Cutting Edge Count (CEDC) 6
  • Type Turning Insert
  • Grade Type Carbide CVD
  • Grade TP25
SKU: A0158462

Seco Turning Insert T Shape Code 4.76 x 0.8 x 9.53mm G Insert Type - MF2 Grade TP25 TNMG160408-MF2 Pack of 10

Turning Insert TNMG Insert Style - MF2 Grade TP25

$191.62
