Description

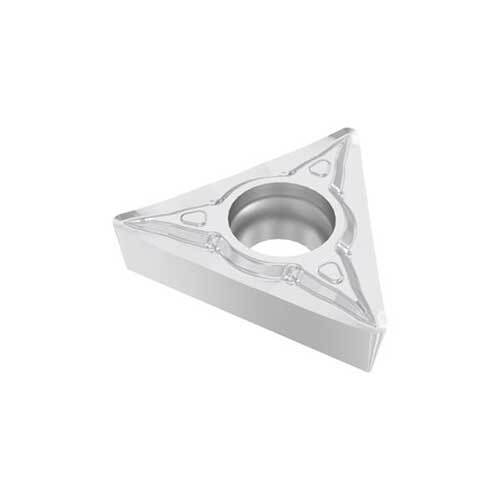

Turning Insert TCMT Insert Style - F1 7° Grade TM1501

  • T shape code
  • T Insert Type.
  • 7° insert side clearance angles.

TM1501 Insert Grade

  • Duratomic® grade.
  • The highly resistant and optimized grade for many continuous cuts in stainless steel turning applications.
  • Complements in mixes of steel and stainless steel turning.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

F1 Chipbreaker Programme

  • Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
  • Suitable for high feed rates at fine depths of cut in precision forgings and castings.
  • Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
  • Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158437
  • Brand Seco
  • Model Number 03276594
  • Net Weight (kg) 0.006
  • Designation TCMT16T304-F1 TM1501
  • Chip Breaker Manufacturers Designation (CBMD) F1
  • Fixing Hole Diameter (d1) Mm 4.5
  • Corner Radius (RE) mm 0.4
  • Insert Hand (IH) Neutral
  • Clearance Angle Major (an) Deg 7.0 deg
  • Insert Thickness (S) mm 3.97
  • Insert Included Angle (EPSR) 60.0 deg
  • Insert Seat Size Code (SSC) mm 16
  • Theoretical Cutting Edge Length (L) mm 16.5
  • Inscribed Circle Diameter (IC) mm 9.53
  • Cutting Edge Effective Length (LE) mm 15.52
  • Cutting Edge Count (CEDC) 3
  • Type Turning Insert
  • Grade Type Carbide CVD
  • Grade TM1501
SKU: A0158437

Seco Turning Insert T Shape Code 3.97 x 0.4 x 9.53mm M Insert Type - F1 7° Grade TM1501 TCMT16T304-F1 Pack of 10

Turning Insert TCMT Insert Style - F1 7° Grade TM1501

$222.12
