Description

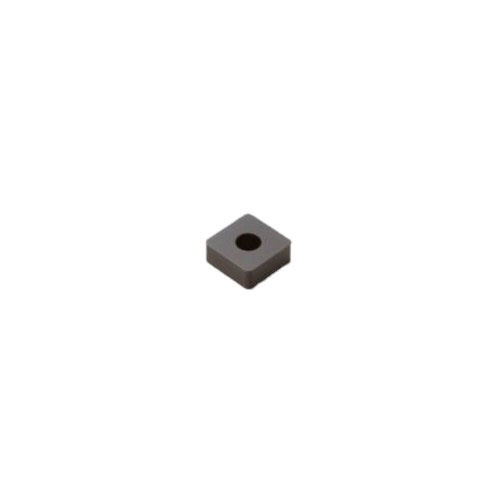

Turning Insert SNMA Insert Style Grade TK0501

  • S shape code.
  • A insert type, with a hole, no chipbreaker.
  • TK0501 insert grade.

TK0501 Insert Grade

  • Duratomic® grade.
  • An extremely wear-resistant optimized grade choice for machining of grey cast iron and easier ductile cast irons.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116933
  • Brand Seco
  • Model Number 3062549
  • Barcode Number 62549030001002
  • Designation SNMA090308 TK0501
  • Grade TK0501
  • Fixing Hole Diameter (d1) Mm 3.8
  • Insert Shape Code (SC) S
  • Insert Thickness (S) mm 3.18
  • Cutting Edge Count (CEDC) 8
  • Theoretical Cutting Edge Length (L) mm 9.53
  • Clearance Angle Major (an) Deg 0.0 deg
  • Insert Seat Size Code (SSC) 9
  • Cutting Edge Effective Length (LE) mm 8.7
  • Grade Type Carbide CVD
  • Insert Included Angle (epsr) Deg 90.0 deg
  • Inscribed Circle Diameter (IC) mm 9.53
  • Corner Radius (RE) mm 0.8
  • Insert Hand (IH) Neutral
  • Type Turning Insert
  • Insert Style SNMA
  • Insert Grade Grade TK0501
SKU: A0116933

Seco Turning Insert S Shape Code 3.18 x 0.8 x 9.53mm A Insert Type Grade TK0501 ± 0.13/± 0.05mm Tolerance SNMA090308,TK0501 - Pack of 10

Turning Insert SNMA Insert Style Grade TK0501

$127.74
