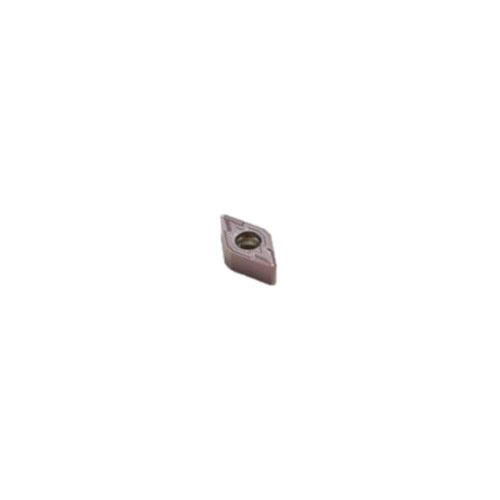

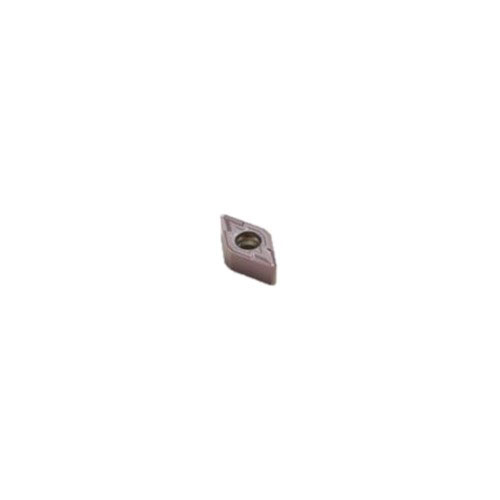

Turning Insert DNMU Insert Style - M3 Grade TH1000

***Illustrations shown may vary from actual product***

Seco Turning Insert D Shape Code 4.76 x 0.4 x 9.53mm U Insert Type - M3 Grade TH1000 ± 0.13/± 0.05mm Tolerance DNMU110404-M3,TH1000 10pcs

Turning Insert DNMU Insert Style - M3 Grade TH1000

• D shape code.
• U insert type, negative insert with hole and chip-breaker on both faces for tool holders with pin lock only.
• TH1000 insert grade.

TH1000 Insert Grade

• A very hard super micro-grain grade intended for partly hardened steel components as well as generally workpiece materials such as superalloys and due to remarkable edge toughness it also provides high performance in interrupted cuts and hard-surface removal.
• Ti-Al-Si-N nanolaminate coating.

M3 Chipbreaker Programme

• First choice for medium-rough machining and also the most versatile Seco chipbreaker.
• In most cases, it is the only chipbreaker needed.
• It offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
• Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
• Indicative machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
