Turning Insert CNMG Insert Style - MF4 Grade TM25011

Turning Insert CNMG Insert Style - MF4 Grade TM25012

Turning Insert CNMG Insert Style - MF4 Grade TM25013

Seco Turning Insert C Shape Code 6.35 x 1.2 x 19.05mm G Insert Type - MF4 Grade TM2501 ± 0.13/± 0.1mm CNMG190612-MF4 Pack of 10

Seco Turning Insert C Shape Code 6.35 x 1.2 x 15.88mm G Insert Type - MF4 Grade TM2501 ± 0.13/± 0.1mm CNMG160612-MF4 Pack of 10

Seco Turning Insert C Shape Code 6.35 x 0.8 x 15.88mm G Insert Type - MF4 Grade TM2501 ± 0.13/± 0.1mm CNMG160608-MF4 Pack of 10

Seco Turning Insert C Shape Code 4.76 x 1.6 x 12.7mm G Insert Type - MF4 Grade TM2501 ± 0.13/± 0.08mm CNMG120416-MF4 Pack of 10

Seco Turning Insert C Shape Code 4.76 x 1.2 x 12.7mm G Insert Type - MF4 Grade TM2501 ± 0.13/± 0.08mm CNMG120412-MF4 Pack of 10

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MF4 Grade TM2501 ± 0.13/± 0.08mm CNMG120408-MF4 Pack of 10

Seco Turning Insert C Shape Code 4.76 x 0.4 x 12.7mm G Insert Type - MF4 Grade TM2501 ± 0.13/± 0.08mm CNMG120404-MF4 Pack of 10

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Turning Insert CNMG Insert Style - MF4 Grade TM2501

SKU: A0158317

Type: Turning Insert

$254.22

Inc. GST

⚙Coated Carbide Insert

⚙Turning Insert CNMG Insert

📐Multiple Sizes Available

🔩CNC & Lathe Turning

🏗CNC & Precision Machining

☑Duratomic Coated Carbide

Available

Product Highlights −

***Illustrations shown may vary from actual product***

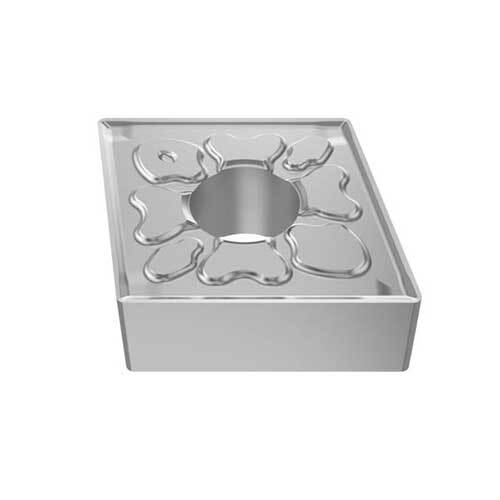

Turning Insert CNMG Insert Style - MF4 Grade TM2501

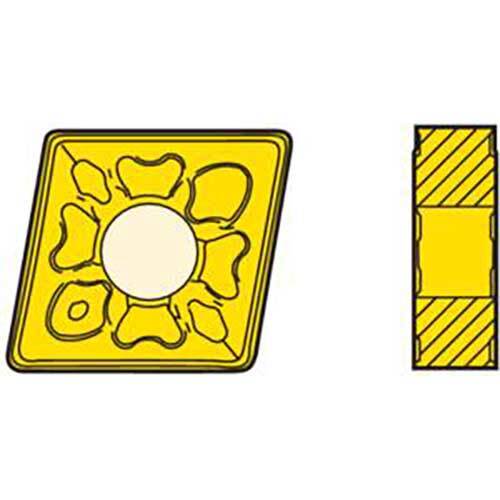

C shape code.
G insert type, with hole and chip breaker on both faces.

TM2501 Insert Grade

Duratomic® grade.
A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness.
First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF4 Chipbreaker Programme

Chipbreaker intended for medium/finishing of stainless steel, very open and highly positive geometry.
Indicative machining range: f = 0,15–0,50 mm/rev, ap = 0,5–4,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Options:

CNMG120404-MF4 TM2501mm turning insert
Model Number: 3273901
CNMG120408-MF4 TM2501mm turning insert
Model Number: 3273904
CNMG120412-MF4 TM2501mm turning insert
Model Number: 3273909
CNMG120416-MF4 TM2501mm turning insert
Model Number: 3276036
CNMG160608-MF4 TM2501mm turning insert
Model Number: 3273915
CNMG160612-MF4 TM2501mm turning insert
Model Number: 3273926
CNMG190612-MF4 TM2501mm turning insert
Model Number: 3276046
