Specifications
- AIMS SKU A0158279
- Brand Seco
- Model Number 03275965
- Net Weight (kg) 0.003
- Designation CCMT09T308-MF2 TM2501
- Chip Breaker Manufacturers Designation (CBMD) MF2
- Fixing Hole Diameter (d1) Mm 4.5
- Corner Radius (RE) mm 0.8
- Insert Hand (IH) Neutral
- Clearance Angle Major (an) Deg 7.0 deg
- Insert Thickness (S) mm 3.97
- Insert Included Angle (EPSR) 80.0 deg
- Insert Seat Size Code (SSC) mm 9
- Theoretical Cutting Edge Length (L) mm 9.67
- Inscribed Circle Diameter (IC) mm 9.53
- Cutting Edge Effective Length (LE) mm 8.85
- Cutting Edge Count (CEDC) 2
- Type Turning Insert
- Grade Type Carbide CVD
- Grade TM2501
SKU: A0158279

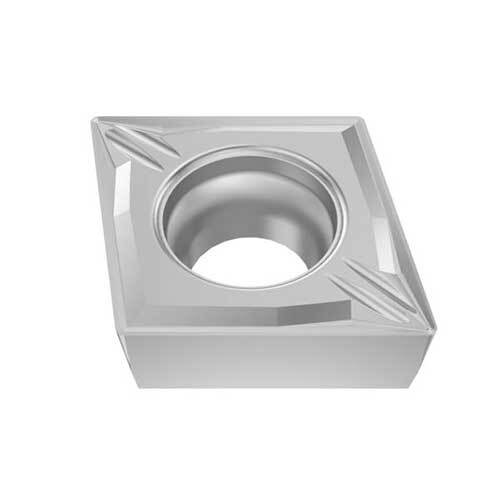

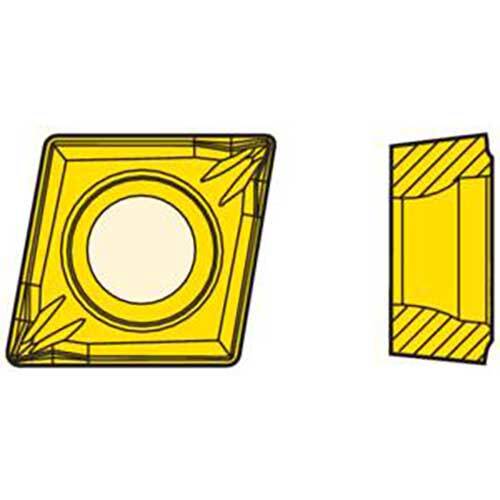

Seco Turning Insert C Shape Code 3.97 x 0.8 x 9.53mm T Insert Type - MF2 7° Grade TM2501 ± 0.13/± 0.05mm CCMT09T308-MF2 Pack of 10
Turning Insert CCMT Insert Style - MF2 7° Grade TM2501
$181.14
