Description

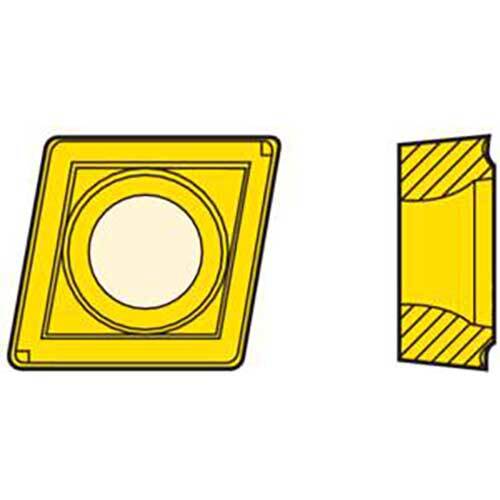

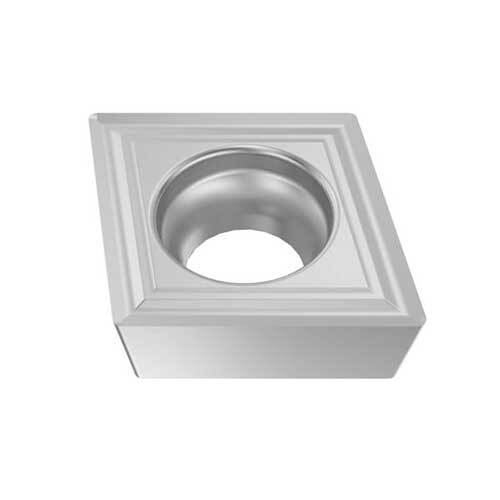

Turning Insert CCMT Insert Style - M3 7° Grade TM2501

  • C shape code
  • T Insert Type.
  • 7° insert side clearance angles.

TM2501 Insert Grade

  • Duratomic® grade.
  • A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness.
  • First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M3 Chipbreaker Programme

  • First choice for medium-rough machining and also the most versatile Seco chipbreaker.
  • In most cases, it is the only chipbreaker needed. Offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials.
  • Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength.
  • Recommended machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm. (f = 0.006-0.020 in/rev, ap = 0.020-0.200 inch)

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158259
  • Brand Seco
  • Model Number 03275979
  • Net Weight (kg) 0.015
  • Designation CCMT160512-M3 TM2501
  • Chip Breaker Manufacturers Designation (CBMD) M3

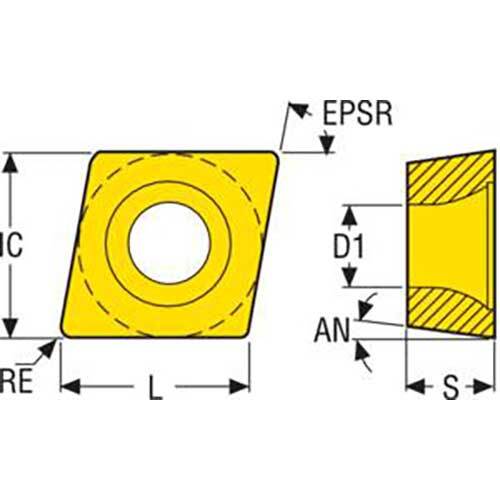

  • Fixing Hole Diameter (d1) Mm 5.6
  • Corner Radius (RE) mm 1.2
  • Insert Hand (IH) Neutral
  • Clearance Angle Major (an) Deg 7.0 deg
  • Insert Thickness (S) mm 5.56
  • Insert Included Angle (EPSR) 80.0 deg
  • Insert Seat Size Code (SSC) mm 16
  • Theoretical Cutting Edge Length (L) mm 16.12
  • Inscribed Circle Diameter (IC) mm 15.88
  • Cutting Edge Effective Length (LE) mm 14.89
  • Cutting Edge Count (CEDC) 2
  • Type Turning Insert
  • Grade Type Carbide CVD
  • Grade TM2501
SKU: A0158259

Seco Turning Insert C Shape Code 5.56 x 1.2 x 15.88mm T Insert Type - M3 7° Grade TM2501 ± 0.13/± 0.1mm CCMT160512-M3 Pack of 10

Turning Insert CCMT Insert Style - M3 7° Grade TM2501

$399.44
