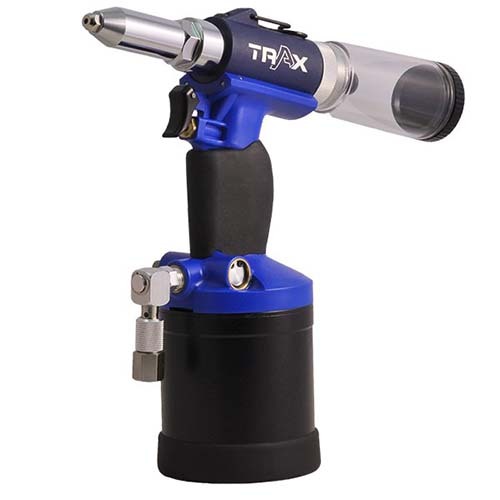

Trax 3/16" Heavy Duty Air Hydraulic Riveter

Specification:

• Traction Power (kgf / lbf): 908 / 2000 at (85psi)
• Stroke Length (mm): 23.5
• Working Air Pressure: 85 - 95 psi
• Nosepiece: 3/32" (2.4mm), 1/8" (3.2mm), 5/32" (4.0mm), 3/16" (4.8mm)
• Width x Height: 290 x 270mm
• Base Diameter: 96.5mm
• Air Consumption: 4 cfm
• Vacuum: Yes
• Capacity: 3/32" (2.4mm), 1/8" (3.2mm), 5/32" (4.0mm), 3/16" (4.8mm)

Features:

• Design with ergonomics.
• Set 3/16" and 3/32" to structure around Monobolt rivets, T -type rivets, and standard rivets in all materials.
• Low recoil of shock-less can reduce parts consumed and minimise fatigue.
