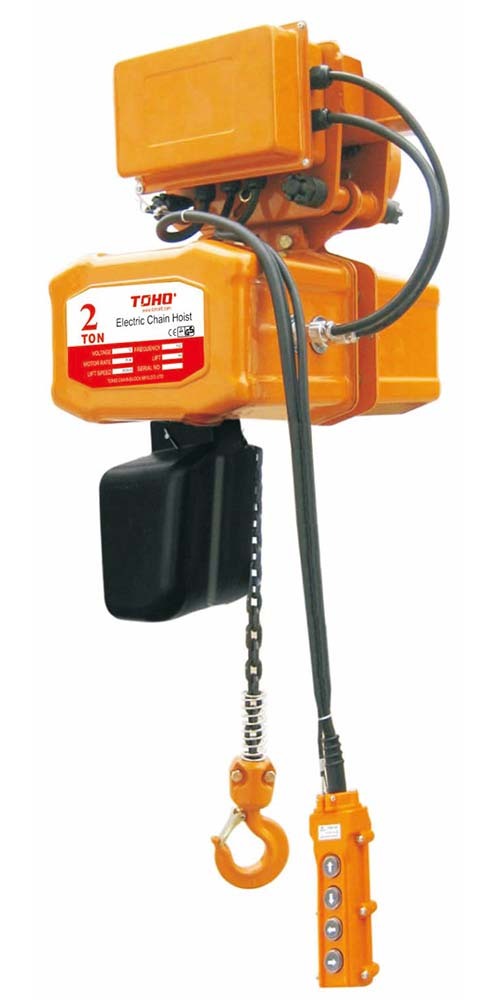

Toho Electric Chain Hoist Single Phase With Electric Trolley

• Load Limited
• Thermal Prevention
• Light weight, compact design with high efficiency motor
• Pressed steel structure, high strength body
• High tensile alloy steel top & bottom hooks
• Grade 80 – 7.1mm Alloy Steel load chain
• Limit switches fitted at top and bottom ends to prevent chain runout
• 240V, 50Hz Single speed Motor 1200 Watts. (Single Phase)
• Complies with ASNZS 1418.2 standard
• Hoists can be re-chained to your required length (limits apply
• The electric trolley offers a long and reliable operation
• Compact structure, light weight, easily operation and attractive appearance.
• Widely used in factories, mines, ports, shopping centres and warehouses.
• IP Rating Hoist: IP54, Control: IP65

Specifications

• Electric Chain Hoist
  • Capacity (ton): 2
  • Standard Lift (m): 6
  • Motor Power (kW): 1.2
  • Running Test Load (kN): 25
  • No. of Chain: 2
  • Dia of Chain (mm): 7.1
  • Lifting Speed (m/min): 3
  • Trolley Speed (m/min): 20
  • Size of I-beam (mm): 74 - 124
  • Min. radius of curve (m): 1.1
  • Net Weight (kg): 107
• Electric Trolley
  • Motor Power (w): 300
