Description

Thrust Ball Bearing - Metric

  • Metric.

About Thrust Ball Bearings

  • Thrust bearings are designed primarily to support axial loads at contact angles between 30° and 90°.
  • Similar to radial bearings, thrust bearing designs may incorporate balls or rollers as rolling elements.
  • With thrust bearings, it is necessary to supply an axial preload in order to prevent slipping between the bearing's rolling elements and raceways.

Specifications

  • AIMS SKU A0156744
  • Brand NTN
  • Model Number 51124/NTN
  • Width (mm) 25
  • Allowable Speed Min-1 Oil Lubrication 2200
  • Basic Load Rating Static C0a (kN) 310
  • Inner Diameter (mm) 120
  • Allowable Speed Min-1 Grease Lubrication 1500
  • Basic Load Rating Dynamic Ca (kN) 89
  • Outer Diameter (mm) 155
  • Fatigue Load Limit Cu (kN) 11.8
  • rs min (1) 1
  • Type Thrust Ball Bearing
  • Series 511
SKU: A0156744

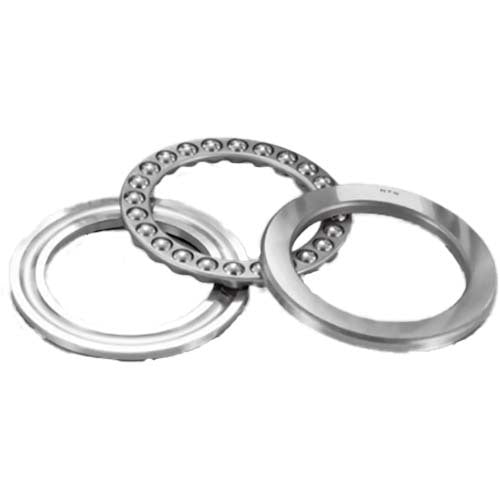

NTN 51124 Thrust Ball Bearing 511 Series Metric 120 x 155 x 25mm

Thrust Ball Bearing - Metric

$456.53
