**Special order. Contact AIMS for lead time**

**Earth Strap and Air Coupling not included.**

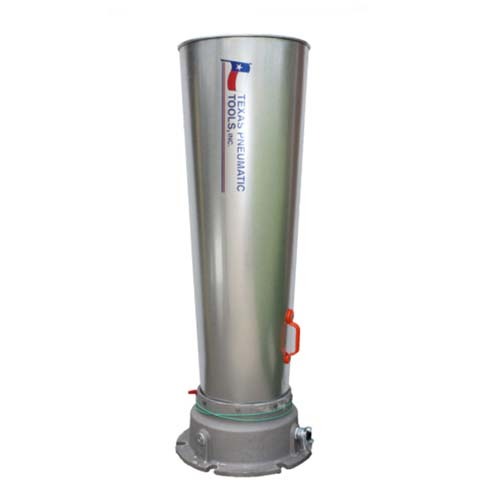

Venturi Air Mover

• Air Movers, or air horns, are used wherever there is a need to disperse fumes, move air into confined spaces, cool men working in elevated temperature conditions, or cool machinery or products with a blast of directed air.
• Common applications are found in refineries, chemical plants, utilities, and congeneration units, metal fabrication plants, paper, and pulp plants, shipyards, the marine industry, and the steel industry.
• Texas Pneumatic air movers have been tested at an independent laboratory.
• The free flow ratings listed are based on tests to AMCA Standard 210.
• Under identical testing situations, Texas Pneumatic air movers equaled or exceeded the air flow of competitively manufactured air movers.

Features of Texas Pneumatic Air Movers

• No moving parts.
• Used for venting hazardous areas.
• Maintenance is minimal.
• Can be used as a blower or exhauster.
• Operates on compressed air or steam.
• Connection for a ground wire.
• Tested at an independent laboratory to AMCA Standard 210, equaling or exceeding the air flow of competitively manufactured air movers.

Specifications

• Overall Length: 48"
• Base Diameter: 16.75"
• Horn Diameter: 15.75"
• NPT Size: 1"
• Bolt Circle Diameter: 5.5"
• Base Slot Diameter: 1"
• Net Weight: 42.50 lbs
• Net Shipping Weight: 49 lbs
