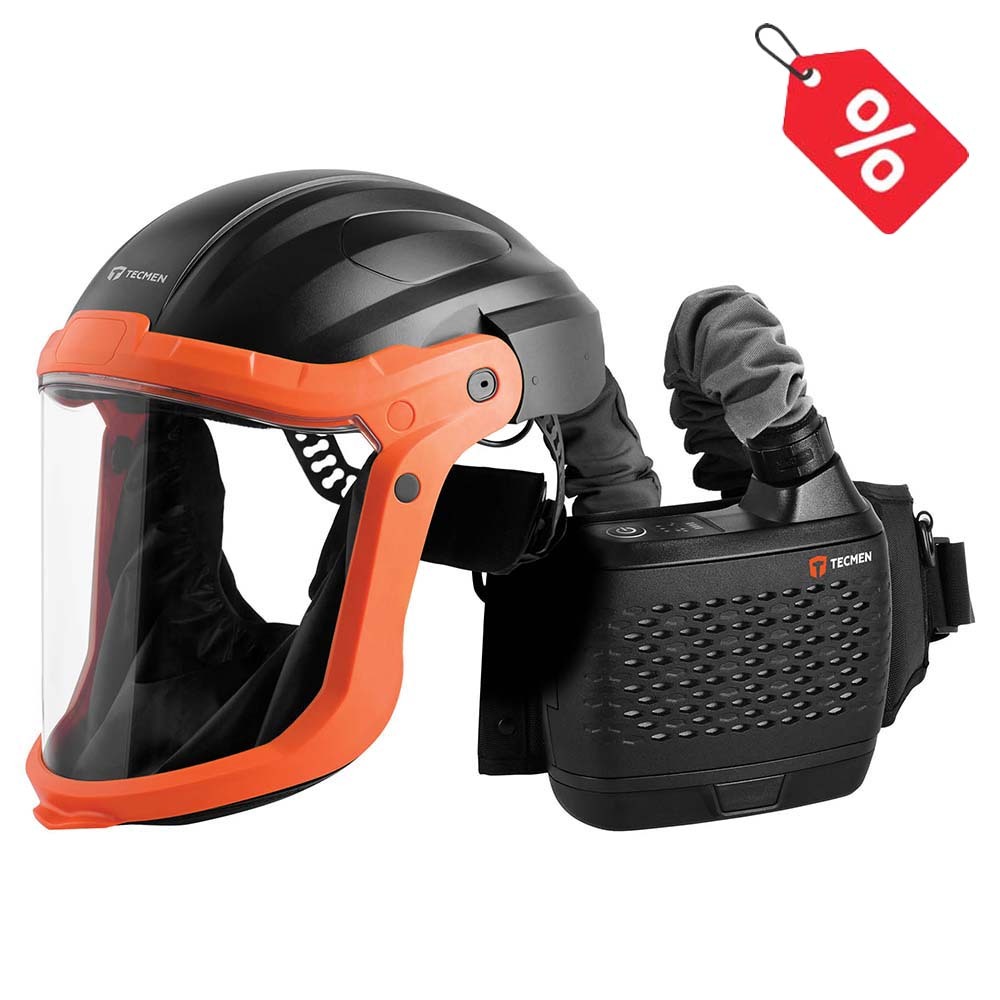

Tecmen PAPR Freflow V1 Face Shield With G10 Bumpcap

• TECMEN powered air purifying faceshield has a compact shape and a balanced center of gravity.
• Used with Frelow V1 respiratory system, the overall filtration effieency is a high as 99.997%, it's convenient, comfortable and easy to adjust, providing users with comprehensive protection for respiratory, eye and face, head.
• TECMEN G series face shields are equiped with head protection to protect head from injury.
• Provides comprehensive head protection by anti-splash metal melt, anti-puncture sprint, and not easy to deform.
• Protect against general bumps and and small splashing items.
• Robust and comfortable.
• Approved by EN 812.

Classifications/Approvals

• Helmet: EN 812:2012, EN166:2001
• Respirator: EN12941, AS/NS1716: 2012 – Freflow V1, Particle filter with class P3 inside

Face Shields Specifications

• Model: G10
• Weight: 660g
• Head Protection Level: EN 812:2012
• Suitable Working Environment: General bump cap bump protection requirements
• Eye & Face Standard: EN166:2001

Respirator Specifications

• Model: Fireflow v1
• Airflow Rate:

  Manufacturer's minimum design flow rate: 165+lpm (5.8+cfm)
  Standard air flow 170+lpm (6+cfm)
  Fast speed air flow: 210+lpm (7.4+cfm)


• Fast-charging

  Battery type: rechargeable Li-ion battery
  Standard battery duration: 170+lpm - 9 hours; 210+lpm - 6 hours
  Extended battery duration: 170+lpm - 15 hours; 210+lpm - 9 hours
  Standard battery charge time: 1 hour
  Mended battery charge time: 2 hour
  Battery life: ≥550 charges


• Filter


  Filter efficiency >99.997%
  Alarms: Visible, audible, and vibrate


• Temperature

  Operating temperature: -5°C to 55°C (23°F - 131°F)
  Storage temperature: -10°C to 55°C (14°F to 131°F}


• Relative Humidity (R.H.)

  Operating (R.H.): <90%
  Storage (R.H.): <90%


• Weight: 1020g (Blower unit + fast-charging standard battery)
• Respirator Approval: EN12941, AS/NS1716

Applications

• Metallurgy / Grinding

• Chemical Industry
• Medicine
• Laboratory/ Research Institute
• Nuclear Power
• Public Health
• Rail Transit
• Automobile Manufacturing
• Shipbuilding
• Hazardous Chemical Production

Features

• Eye/face/respiratory protection
• Full Face Clear Lens
• Bump Resistance Head Protection
• Class leading P3 filter
• Include shoulder strap and carry bag
• Flip-up design: The shield can be simply flipped up when not in need.
• Built-in wind direction adjustment: Air flow direction can be changed with built-in wind direction adjuster for optimum comfort.
• Adjustable headband: The top of the headgear is adjustable in 6 gears, and the rear is infinitely adjustable to meet the needs of different head circumferences.
• Skin-friendly sealing head covering:The fabric has good water resistance and flame retardancy, and good sealing performance, ensuring that a micro-positive pressure state is formed in face shield.
