Description

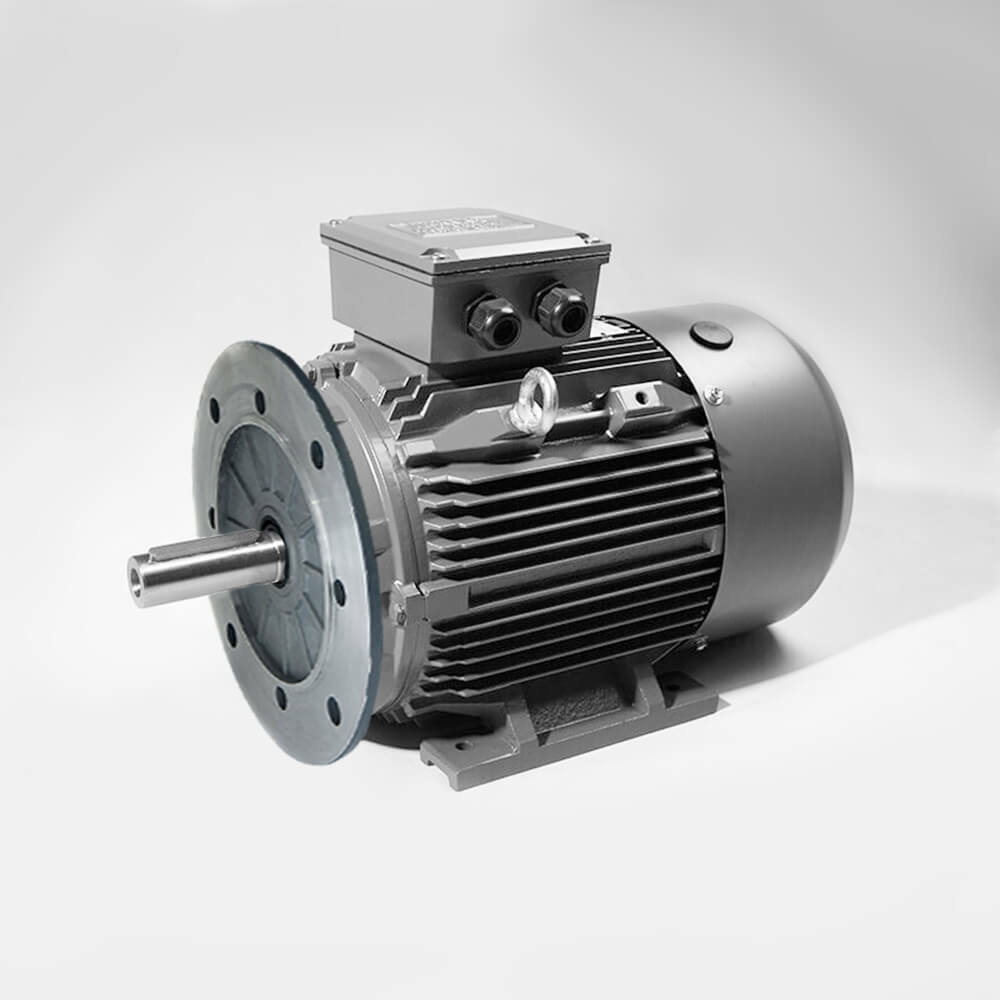

TechTop’s TCI cast iron series motors combine superior electrical characteristics, high quality design and the robust strength of cast iron. This AC induction motor is ideal for all industrial applications.

A unique feature of the TCI series electric motor is its multi-mount design up to 280 frame, allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Minimum Energy Performance Standards (MEPS) Compliant

Specifications

  • AIMS SKU A0099291
  • Brand TechTop
  • Model Number TC6B0116TCI
  • Poles 6
  • Mounting Position B3,B14A
  • Base RPM 950
  • Shaft Diameter 24 mm
  • Mounting Type Foot & Flange Mounted
  • IEC Frame Size 90 L
  • Group Code Techtop-TCI-1.1kw
  • Type Three Phase
  • Material Cast Iron
  • Nominal Rated Input Voltage 415 V
  • Rated Load (kW) 1.1
  • Rated Load (HP) 1 1/2
  • AC Phase Three Phase
  • Series Techtop TCI
  • Current Type AC
SKU: A0099291 On Sale

TechTop 1.1kW 1 1/2 HP Motor 415V 3 Phase 6 Pole, 950 RPM, Foot & Flange TC6B0116TCI

415V Three Phase Cast Iron Motor (TC6B0116TCI)

$269.76
$317.37
