TechTop’s TAI aluminium series AC induction motors are suitable for all industrial applications where optimal design performance and low weight are key factors.

As standard, TechTop’s TAI series electric motors are fitted with detachable feet allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Minimum Energy Performance Standards (MEPS) Compliant

SKU: A0098185 On Sale

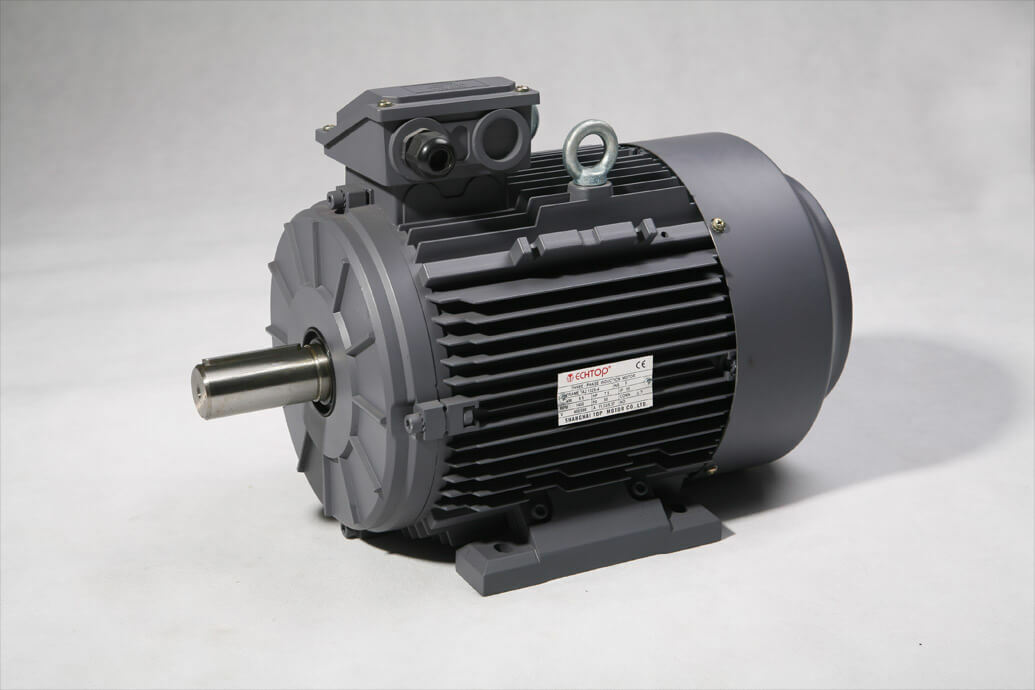

TechTop 0.12kW 0.16 HP Motor 415V 3 Phase 6 Pole, 830 RPM, Foot Mount TA6A0123TAI

415V Three Phase Aluminium Motor (TA6A0123TAI)

$90.89
$113.61
Sale Ends in

How it works.

Make 4 payments of $22.72 over 8 weeks and get it now!


Buy now, pay later.

Choose a different size/variant

Specifications

  • AIMS SKU A0098185
  • Brand TechTop
  • Model Number TA6A0123TAI
  • Poles 6
  • Mounting Position B3
  • Base RPM 830
  • Shaft Diameter 11 mm
  • Mounting Type Foot-Mounted
  • IEC Frame Size 63 B
  • Group Code Techtop-TAI-0.12kw
  • Type Three Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 415 V
  • Rated Load (kW) 0.12
  • Rated Load (HP) 0.16
  • AC Phase Three Phase
  • Series Techtop TAI
  • Current Type AC
