Description

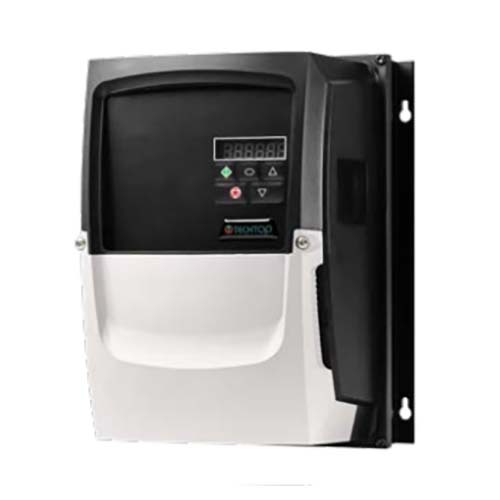

TECDrive AC Variable Frequency Drive 1 Phase 200-240V E3 IP66 Non-Switched

TECDrive AC Variable Frequency Drive (VFD) is an easy to use general-purpose drive that provides simplicity of installation, connection, and commissioning, allowing the user to benefit from the precise motor control and energy savings within minutes.

General Features:

  • Focused on ease of use
  • Provides unrivalled simplicity of installation, connection and commissioning
  • Precise motor control and energy savings within minutes.
  • Simple commissioning - Just 14 basic parameters for rapid set-up
  • Application Macros: Switch between Industrial, Pump & Fan modes to optimise TECDrive VFD for your application.
  • Intuitive Keypad Control- Precise digital control at the touch of a button.
  • Sensorless Vector control for all motor types
  • Precise and reliable control for all motor types IE2, IE3 & IE4 motors
  • Compact robust and reliable general-purpose drive
  • Internal PI control
  • Internal brake chopper
  • Dual analogue inputs
  • Operates in ambient temperatures up to 50°C
  • Bluetooth connectivity
  • With 2 x RJ45 ports which eliminate the need for a splitter.
  • Easily accessible EMC disconnect
  • Easy to wire due to the large, accessible chamber and removable gland plate.
  • Option for control of single phase motors
  • Modbus RTU and Canopen on-board as standard
  • Internal C1 category EMC Filter according to EN61800-3:2004
  • IP66 is suitable for mounting externally with many mounting options

IP66 Key Features:

  • Enclosed drives for direct machine mounting
  • Dust-tight design
    • Install directly on your processing equipment
    • Guaranteed protection from dust and contaminants
  • Ready for washdown duty
    • With a sealed ABS enclosure and corrosion-resistant heatsink, the TECDrive IP66 is ideal for high-pressure washdown and applications
    • Coated heatsink based operations requiring washdowns such as food and beverage
  • Outdoor Rated
    • Built with tough polycarbonate plastics specifically chosen to withstand degredation by ultra violet (UV), greases, oils and acids. Also robust enough not to be brittle at -20°C

Specifications

  • AIMS SKU A0164608
  • Brand Invertek
  • Model Number TTA-3-120023-1F1A
  • Output Power 0.37 kW
  • Depth (mm) 179
  • Enclosure IP66
  • Input Voltage Single Phase (220-240V)
  • Weight (kg) 3.1
  • Size Of Frame 1
  • Output Power (hp) 0.5
  • Height Size (mm) 232
  • EMC Filter Yes
  • Output Current (a) 2.3
  • Width 161
  • Switched No
  • Type Variable Frequency Drive
SKU: A0164608 On Sale

TECDrive AC Variable Frequency Drive 0.37 kW 1 Phase 200-240V E3 IP66 Non-Switched

AC Variable Frequency Drive 1 Phase E3 IP66 Non-Switched

$665.40
