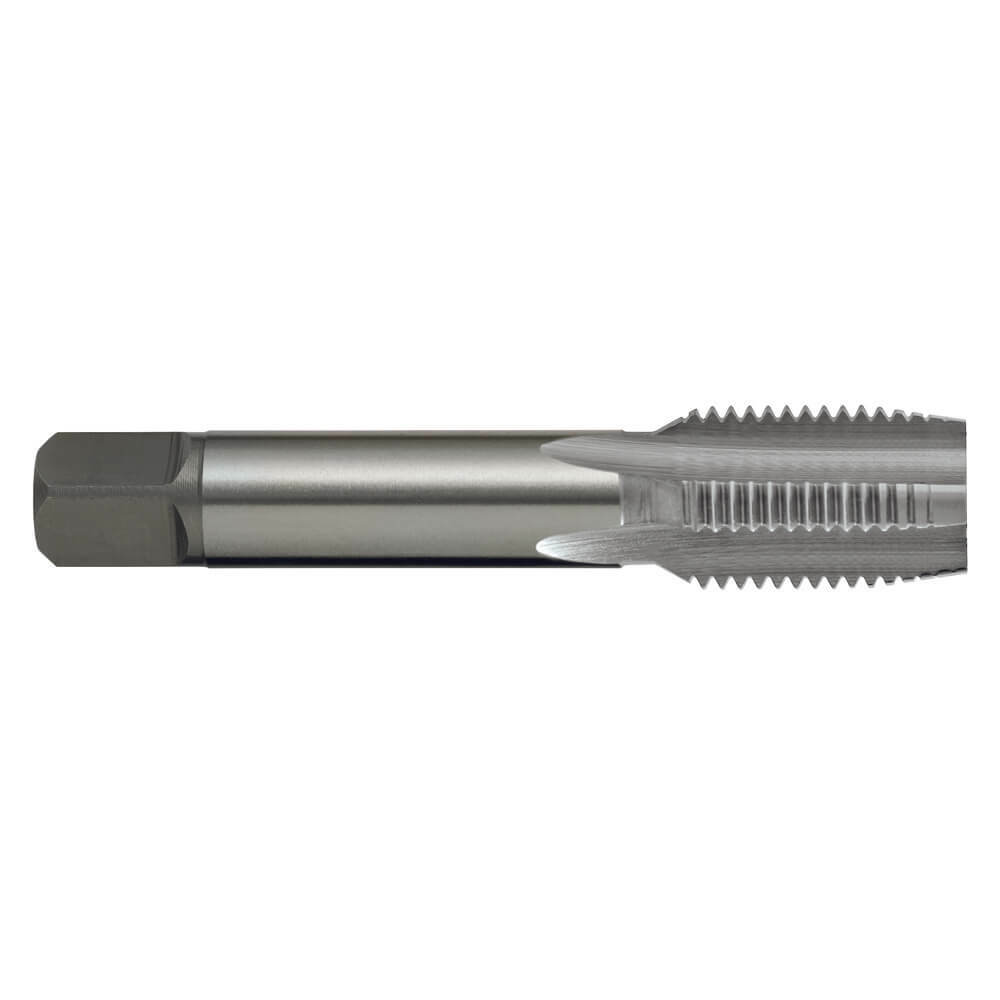

Sutton T4803020 G-BSPF G 7/8 x 14 Straight Flute Tap - Intermediate - HSS

Description

Features

General Purpose use for materials up to approx. 1000 N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO2284
Thread Form: ISO G Parallel Series 55° (G-BSPF)
Nut Tolerance: Z3
Lead: Intermediate

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0015775

Brand Sutton Tools

Model Number T4803020

Barcode Number 9311963108285

TPI 14

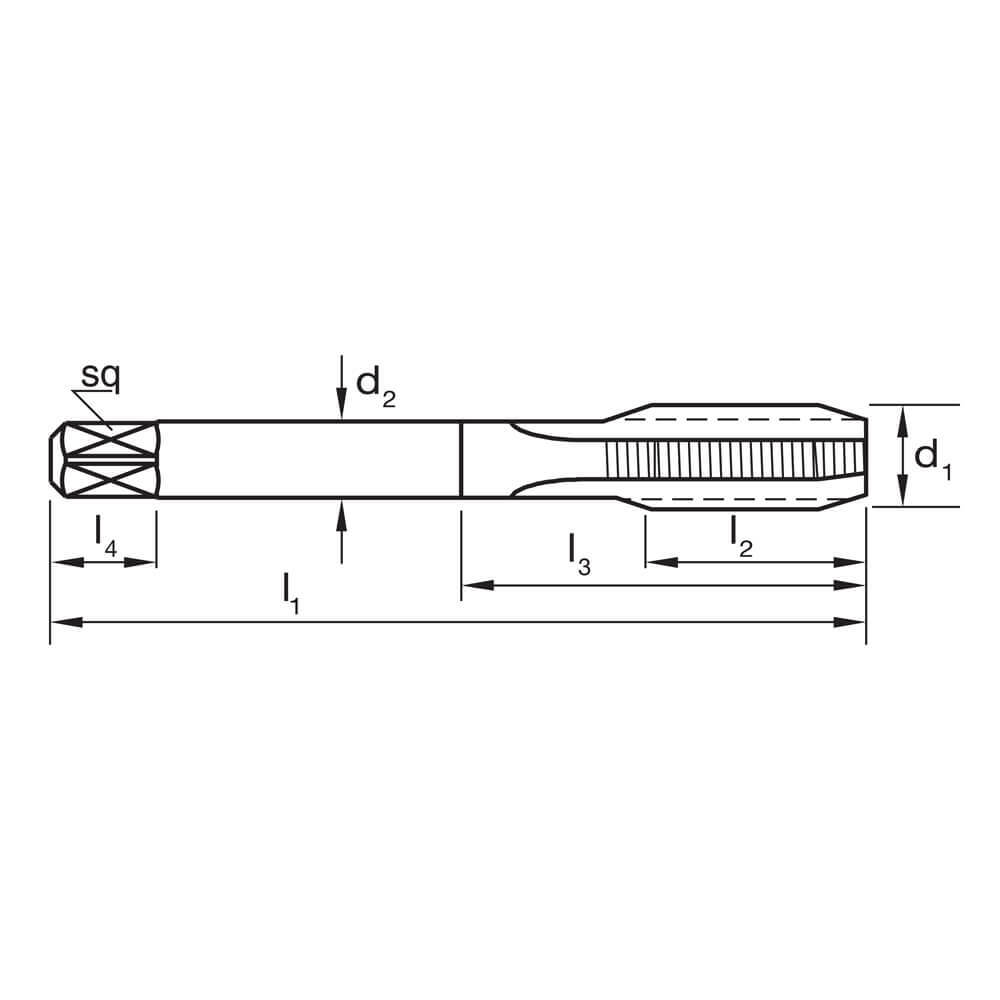

Shank (mm) 22.4

L1 (mm) 102

Diameter G7/8

Drill Size (mm) 28.5

L2 (mm) 29

Sq 18

z 4

L4 (mm) 22

Group Code T480
System of Measurement ISO2284
Thread Form ISO G Parallel Series 55° (G-BSPF)
Material High Speed Steel (HSS)
Finish Bright
Lead Intermediate
Application N (for normal general purpose type materials)
Nut Tolerance Z3
Max Cut Depth 1xD
Tap Type Straight Flute
Shank Form Reduced Shank (with square drive)
