Sutton T403 M5 x 0.5 Straight Flute Tap Bottoming - HSS - Bright - ISO 529
Available

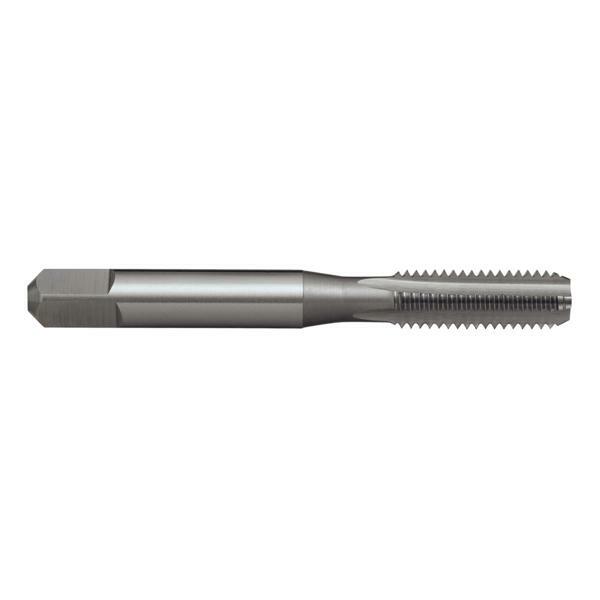

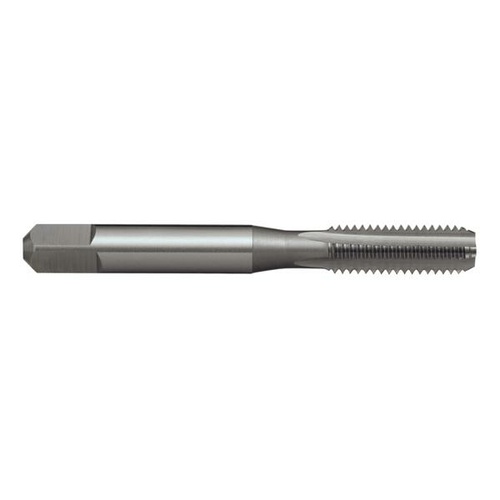

The Sutton T403 is a straight flute tap (bottoming chamfer) for metric fine (MF) threads, made from high speed steel (HSS) with a bright finish. This listing covers 31 sizes from M5 x 0.5 to M40 x 1.5.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a bottoming chamfer (Form E, 1.5 to 2 threads on the lead), for blind holes with very short thread run-out.
The thread tolerance is ISO 2 / 6H. The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through & blind holes.
- Suitable for both hand and machine operations.
- Depths up to approx. 1 x d1.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Bright finish for general purpose applications.
- 4 flutes.
- Bottoming chamfer (Form E), for blind holes with very short thread run-out.
- Thread tolerance ISO 2 / 6H.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T403 0503 | M5 x 0.5 | 0.5 | 4.5 | 58 | 16 | 22 | 5 | 4 | 7 | 4 |
| T403 0604 | M6 x 0.75 | 0.75 | 5.3 | 66 | 19 | 26 | 6.3 | 5 | 8 | 4 |
| T403 0804 | M8 x 0.75 | 0.75 | 7.3 | 72 | 22 | 30 | 8 | 6.3 | 9 | 4 |
| T403 0805 | M8 x 1 | 1 | 7 | 72 | 22 | 30 | 8 | 6.3 | 9 | 4 |
| T403 1004 | M10 x 0.75 | 0.75 | 9.3 | 80 | 24 | 34 | 10 | 8 | 11 | 4 |
| T403 1005 | M10 x 1 | 1 | 9 | 80 | 24 | 34 | 10 | 8 | 11 | 4 |
| T403 1006 | M10 x 1.25 | 1.25 | 8.8 | 80 | 24 | 34 | 10 | 8 | 11 | 4 |
| T403 1205 | M12 x 1 | 1 | 11 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T403 1206 | M12 x 1.25 | 1.25 | 10.8 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T403 1207 | M12 x 1.5 | 1.5 | 10.5 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T403 1405 | M14 x 1 | 1 | 13 | 95 | 30 | - | 11.2 | 9 | 12 | 4 |
| T403 1406 | M14 x 1.25 | 1.25 | 12.8 | 95 | 30 | - | 11.2 | 9 | 12 | 4 |
| T403 1407 | M14 x 1.5 | 1.5 | 12.5 | 95 | 30 | - | 11.2 | 9 | 12 | 4 |
| T403 1605 | M16 x 1 | 1 | 15 | 102 | 32 | - | 12.5 | 10 | 13 | 4 |
| T403 1606 | M16 x 1.25 | 1.25 | 14.8 | 102 | 32 | - | 12.5 | 10 | 13 | 4 |
| T403 1607 | M16 x 1.5 | 1.5 | 14.5 | 102 | 32 | - | 12.5 | 10 | 13 | 4 |
| T403 1806 | M18 x 1.25 | 1.25 | 16.8 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T403 1807 | M18 x 1.5 | 1.5 | 16.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T403 2006 | M20 x 1.25 | 1.25 | 18.8 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T403 2007 | M20 x 1.5 | 1.5 | 18.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T403 2008 | M20 x 2 | 2 | 18 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T403 2207 | M22 x 1.5 | 1.5 | 20.5 | 118 | 38 | - | 16 | 12.5 | 16 | 4 |
| T403 2208 | M22 x 2 | 2 | 20 | 118 | 38 | - | 16 | 12.5 | 16 | 4 |
| T403 2407 | M24 x 1.5 | 1.5 | 22.5 | 130 | 45 | - | 18 | 14 | 18 | 4 |
| T403 2408 | M24 x 2 | 2 | 22 | 130 | 45 | - | 18 | 14 | 18 | 4 |
| T403 2507 | M25 x 1.5 | 1.5 | 23.5 | 130 | 45 | - | 18 | 14 | 18 | 4 |
| T403 2708 | M27 x 2 | 2 | 25 | 135 | 45 | - | 20 | 16 | 20 | 4 |
| T403 3007 | M30 x 1.5 | 1.5 | 28.5 | 138 | 48 | - | 20 | 16 | 20 | 4 |
| T403 3008 | M30 x 2 | 2 | 28 | 138 | 48 | - | 20 | 16 | 20 | 4 |
| T403 3207 | M32 x 1.5 | 1.5 | 30.5 | 151 | 51 | - | 22.4 | 18 | 22 | 4 |
| T403 4007 | M40 x 1.5 | 1.5 | 38.5 | 170 | 60 | - | 28 | 22.4 | 26 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T403 |
| Type | Straight flute tap |
| Thread series | Metric fine (MF) |
| Material | HSS |
| Finish | Bright |
| Chamfer | Bottoming (Form E) |
| Thread tolerance | ISO 2 / 6H |
| Standard | ISO 529 |
| Flutes | 4 |
| Sizes in this listing | 31 sizes, M5 x 0.5 to M40 x 1.5 |
