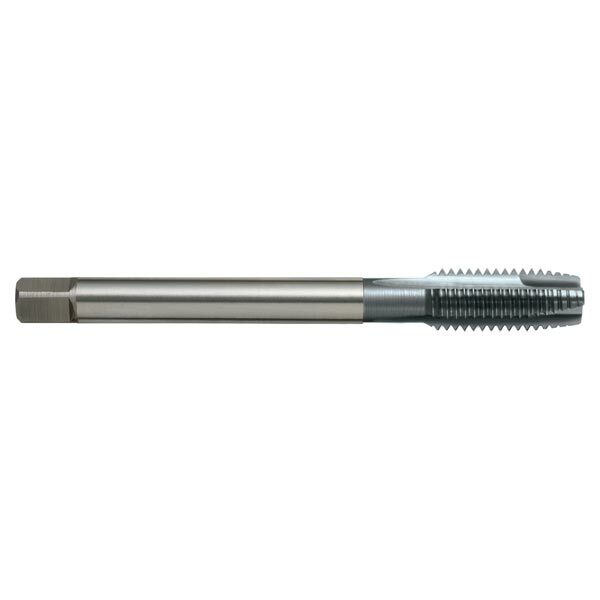

Sutton T113 Metric Spiral Point Tap - Premium HSS TiCN1

Sutton T113 Metric Spiral Point Tap - Premium HSS TiCN2

Sutton T1130600 Metric M6 x 1 Spiral Point Tap - HSSE V3 TiCN

Sutton T1130800 Metric M8 x 1.25 Spiral Point Tap - HSSE V3 TiCN

Sutton T1131000 Metric M10 x 1.5 Spiral Point Tap - HSSE V3 TiCN

Sutton T1131200 Metric M12 x 1.75 Spiral Point Tap - HSSE V3 TiCN

Sutton T1131400 Metric M14 x 2 Spiral Point Tap - HSSE V3 TiCN

Sutton T1131600 Metric M16 x 2 Spiral Point Tap - HSSE V3 TiCN

Sutton T1131800 Metric M18 x 2.5 Spiral Point Tap - HSSE V3 TiCN

Sutton T1132000 Metric M20 x 2.5 Spiral Point Tap - HSSE V3 TiCN

Sutton T1132200 Metric M22 x 2.5 Spiral Point Tap - HSSE V3 TiCN

Sutton T1132400 Metric M24 x 3 Spiral Point Tap - HSSE V3 TiCN

Sutton T1132700 Metric M27 x 3 Spiral Point Tap - HSSE V3 TiCN

Sutton T1133000 Metric M30 x 3.5 Spiral Point Tap - HSSE V3 TiCN

Description +

Dimensions

d1: M6
d2 (mm): 4.5
l1 (mm): 80
l2 (mm): 19
l4 (mm): 6
Square Size (mm): 3.4
z: 3
Drill Size (mm): 5 (drill)
Pitch (mm): 1 (pitch)

Features

Use in stainless steels and high strength steels
Suitable for materials up to 850N/mm2
Through holes
Depths up to 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed

Specifications +

Dimensions

d1: M6
d2 (mm): 4.5
l1 (mm): 80
l2 (mm): 19
l4 (mm): 6
Square Size (mm): 3.4
z: 3
Drill Size (mm): 5 (drill)
Pitch (mm): 1 (pitch)

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed

Features & Benefits +

Features

Use in stainless steels and high strength steels
Suitable for materials up to 850N/mm2
Through holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T113 Metric Spiral Point Tap - Premium HSS TiCN

SKU: A0012920

$255.62

Tax included. Shipping calculated at checkout.

Wide Range
Reliable Services
Proven Trust

Available

The Sutton T113 Metric Spiral Point Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel HSSE-V3 material. It provides depths up to 3 x d1 and is suitable for Steel - Corrosion resistant & cast - Ferritic / Martensitic.
