Description

Sutton T688 Spiral Point (Gun) Tap - UNI - Black Magic

  • Universal high-performance tapping.
  • PM-HSSE V3 offers superior tool life.
  • Use in stainless steel and high strength steels up to 850N/mm2.
  • Through holes up to 3 x d1.
  • Suitable for synchronous tapping in machine operations.

Specifications

  • Designation: UNI
  • Material: PM-HSSE V3
  • Finish: Hardlube
  • Max Cut Depth: 3xD
  • Shank Form: A
  • x: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: M
  • Nut Tolerance: 6HX
  • Lead: Form B / 4.5 x P

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-250HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
  • Optimal for Steel - High alloy, cast & tool-200HB
  • Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic-200HB
  • Optimal for Stainless Steel - Austenitic-180HB
  • Optimal for Stainless Steel - Duplex-250HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non-Heat Treatable-60HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable-100HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatabl-75HB

Specifications

  • AIMS SKU A0131520
  • Brand Sutton Tools
  • Model Number T6881200
  • Barcode Number 9311963514000
  • Lead Form B / 4.5 x P

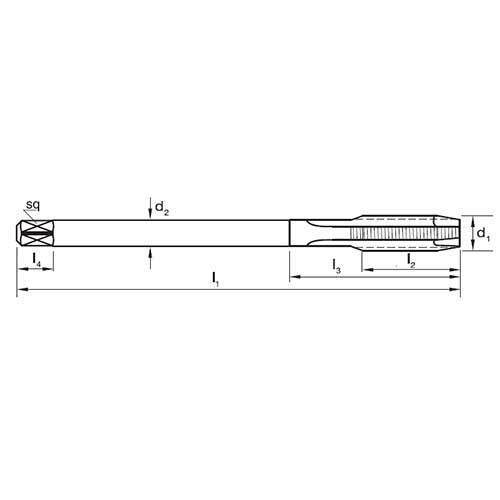

  • L1 (mm) 110
  • Flute 3
  • Sutton Designation UNI
  • Drill Size (mm) 10.2
  • L2 (mm) 17.5
  • Pitch Size (mm) 1.75
  • Shank d2 (mm) 9
  • Square Size (mm) 7
  • Nut Tolerance 6HX
  • Order Multiple 1
  • Diameter Size d1 (mm) M12
  • X als
  • L4 (mm) 10
  • Max Cut Depth 3xD
  • Shank Form A
  • Limit 6HX
  • Type Spiral Point Tap
  • System of Measurement DIN376
  • Thread Form Metric ISO Coarse (M)
  • Material PM-HSSE V3
  • Finish Hardlube
  • Group Code T688
  • Item Type Spiral Point (Gun)
SKU: A0131520

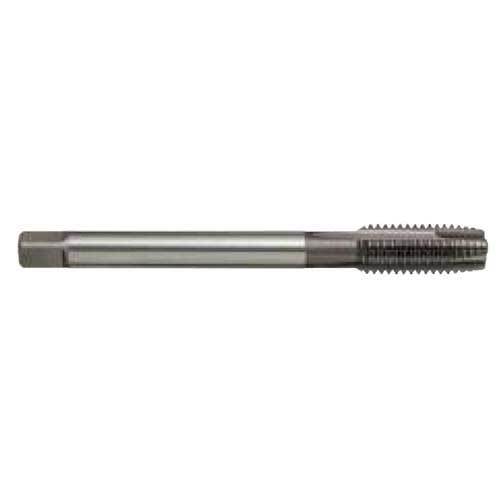

Sutton T6881200 Metric M12 x 1.75 Spiral Point (Gun) Tap UNI PM-HSSE V3

Sutton T688 Spiral Point (Gun) Tap - UNI - Black Magic

$144.54
