Specifications
- AIMS SKU A0131443
- Brand Sutton Tools
- Model Number T5260318
- Barcode Number 9311963353951
- Lead 2P & 4P

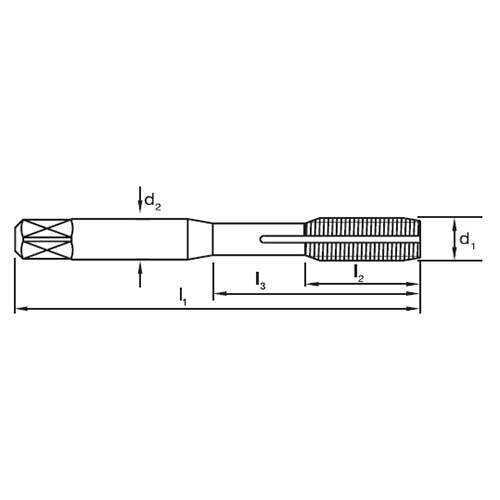

- L1 (mm) 46
- Tap Hole Min/max 2.82-2.92
- Diameter Size #5
- Shank d2 (mm) 4
- L3 (mm) 23
- Limit GH5
- Colour Ring & Application Medium Production
- Geometry 1 Coolant Groove #4+
- L2 (mm) 9
- Pitch Size (mm) 40
- Flute 4
- Square Size (mm) 3.2
- Type Thread Forming Tap
- Material HSS Co.8
- Finish Titanium Nitride (TiN)
- Style 2
- Group Code T526
SKU: A0131443

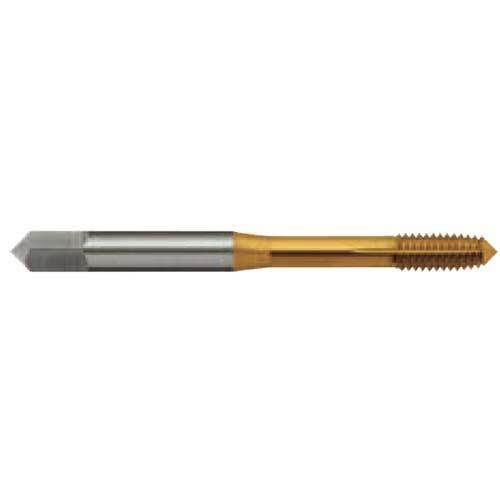

Sutton T5260318 UNC #5 x 40 Thread Forming Tap Single Coolant Groove P Lead
Sutton T526 Thread Forming Tap Single Coolant - UNC - P
$140.31
