Description

Sutton T514 Thread Forming Tap Single Coolant - M - P Lead

  • For cold forming of threads in materials with good flow characteristics.
  • TiN-For steel materials up to 1000 N/mm2
  • Depths up to approx. 3 x d1

Specifications

  • Group Code: T514
  • Material: HSS Co.8
  • Surface Finish: TiN
  • Colour Ring & Application: Medium Production
  • Geometry: 1 Coolant Groove M3+
  • Lead: 4 x P

Specifications

  • AIMS SKU A0131412
  • Brand Sutton Tools
  • Model Number T5140160
  • Barcode Number 9311963135380
  • Lead 4 x P

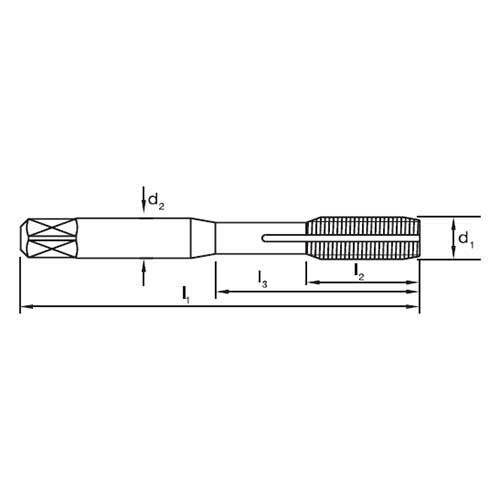

  • L1 (mm) 36
  • Tap Hole Min/max 1.40-1.46
  • Diameter Size d1 (mm) M1.6
  • Shank d2 (mm) 3
  • L3 (mm) -
  • Limit GH4
  • Colour Ring & Application Medium Production
  • Geometry 1 Coolant Groove M3+
  • L2 (mm) 10
  • Pitch Size (mm) 0.35
  • Flute 4
  • Square Size (mm) 2.5
  • Type Thread Forming Tap
  • Material HSS Co.8
  • Finish Titanium Nitride (TiN)
  • Style 1
  • Group Code T514
SKU: A0131412

Sutton T5140160 Metric M1.6 x 0.35 Thread Forming Tap Single Coolant Groove P Lead

Sutton T514 Thread Forming Tap Single Coolant - M - P Le

$176.46
