Sutton T503 M2 x 0.4 Spiral Flute Tap R40 - HSSE - Bright - JIS
Available

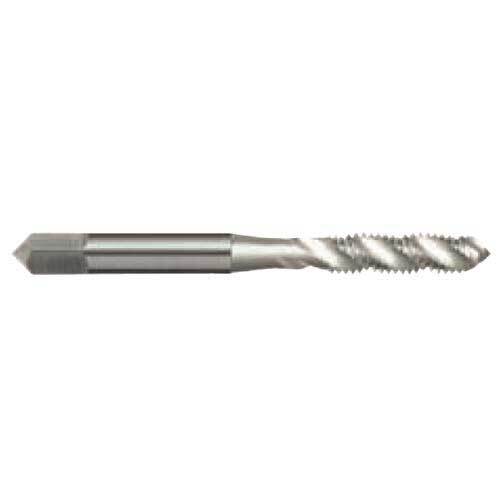

The Sutton T503 is a spiral flute tap (R40 spiral, N designation) for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a bright finish. This listing covers 8 sizes from M2 x 0.4 to M6 x 1.
The 40° right-hand spiral flute suits blind holes in long chipping materials: the high helix angle curls the chips and transports them back out of the hole. The tap cuts on reversal, so the flutes have rake on both front and back faces. The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
The tap is built to JIS (Japanese Industrial Standards).
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Blind holes.
- Depths up to 2.5 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Bright finish for general purpose applications.
- 2 to 3 flutes, depending on size.
- 40° right-hand spiral flute.
- The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
- JIS (Japanese Industrial Standards) construction.
Sizes

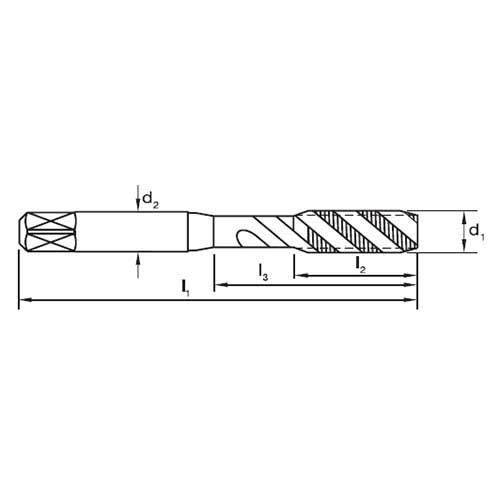

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | Flutes | Limit |
|---|---|---|---|---|---|---|---|---|---|---|
| T503 0200 | M2 x 0.4 | 0.4 | 1.6 | 40 | 12 | - | 3 | 2.5 | 2 | P2 |
| T503 0250 | M2.5 x 0.45 | 0.45 | 2.05 | 44 | 14 | - | 3 | 2.5 | 2 | P2 |
| T503 0260 | M2.6 x 0.45 | 0.45 | 2.15 | 44 | 14 | - | 3 | 2.5 | 2 | P2 |
| T503 0300 | M3 x 0.5 | 0.5 | 2.5 | 46 | 11 | 19 | 4 | 3.2 | 3 | P2 |
| T503 0350 | M3.5 x 0.6 | 0.6 | 2.9 | 48 | 13 | 23 | 4 | 3.2 | 3 | P1 |
| T503 0400 | M4 x 0.7 | 0.7 | 3.3 | 52 | 13 | 21 | 5 | 4 | 3 | P2 |
| T503 0500 | M5 x 0.8 | 0.8 | 4.2 | 60 | 16 | 24 | 5.5 | 4.5 | 3 | P2 |
| T503 0600 | M6 x 1 | 1 | 5 | 62 | 19 | 31 | 6 | 4.5 | 3 | P2 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T503 |
| Type | Spiral flute tap |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | Bright |
| Designation | N |
| Spiral | R40 (40° right-hand) |
| Standard | JIS |
| Flutes | 2 to 3 |
| Sizes in this listing | 8 sizes, M2 x 0.4 to M6 x 1 |
Related products
Related Sutton taps: T504 Metric Coarse Spiral Flute Tap R40 - HSSE - Steam Oxide - JIS.
