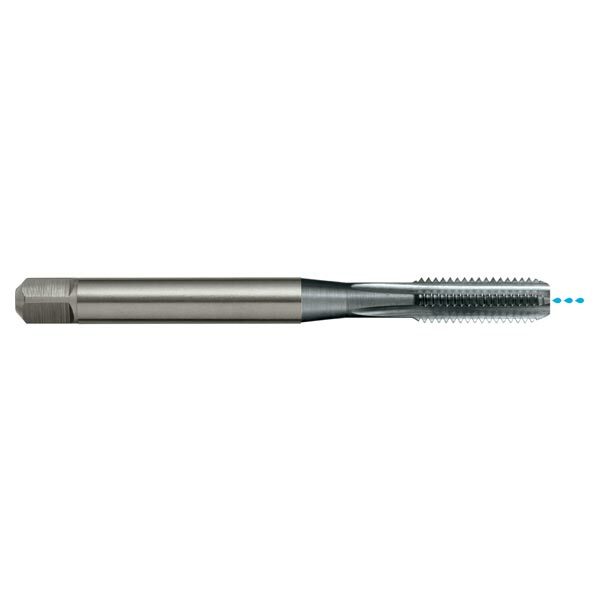

Sutton T357 Metric Straight Flute Tap - Cobalt Steel TiCN1

Sutton T357 Metric Straight Flute Tap - Cobalt Steel TiCN2

Sutton T3570600 Metric M6 x 1 Straight Flute Tap - Cobalt Steel TiCN

Sutton T3570800 Metric M8 x 1.25 Straight Flute Tap - Cobalt Steel TiCN

Sutton T3571000 Metric M10 x 1.5 Straight Flute Tap - Cobalt Steel TiCN

Description +

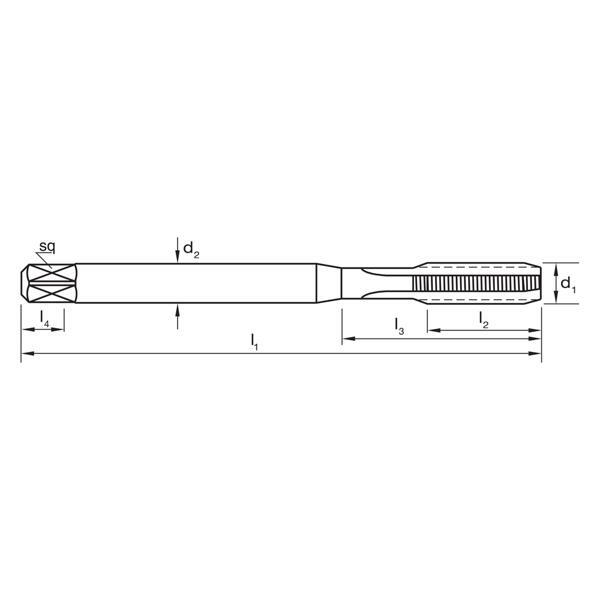

Dimensions

d1: M6
d2 (mm): 6
l1 (mm): 80
l2 (mm): 19
l3 (mm): 30
l4 (mm): 8
Square Size (mm): 4.9
z: 4
Drill Size (mm): 5 (drill)
Pitch (mm): 1 (pitch)

Features

For production tapping in die cast materials
PM-HSS Co for superior tool life
Form E for maximum thread depth in blind holes
Depths up to 1.5 x d1

Specifications

Designation: DC
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with squared drive)
X: ru
Type: Straight Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form E / 1.5 x P

Applications

Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable

Specifications +

Dimensions

d1: M6
d2 (mm): 6
l1 (mm): 80
l2 (mm): 19
l3 (mm): 30
l4 (mm): 8
Square Size (mm): 4.9
z: 4
Drill Size (mm): 5 (drill)
Pitch (mm): 1 (pitch)

Specifications

Designation: DC
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with squared drive)
X: ru
Type: Straight Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form E / 1.5 x P

Application +

Applications

Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable

Features & Benefits +

Features

For production tapping in die cast materials
PM-HSS Co for superior tool life
Form E for maximum thread depth in blind holes
Depths up to 1.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T357 Metric Straight Flute Tap - Cobalt Steel TiCN

SKU: A0014613

$265.52

Inc. GST

Buy It Now

Available

The Sutton T357 Metric Straight Flute Tap by Sutton Tools is a 0 with Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%) material. It offers M10 thread and is suitable for Aluminium & Magnesium, cast alloy ≤12% Si - Non Heat Treatable.

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Taps-Dies-Threading-Catalogue

Sutton-Tools-ISO-Taps-Catalogue
