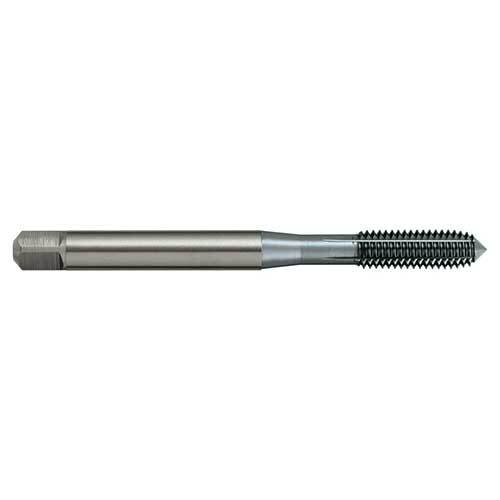

Sutton T3190160 Metric M1.6 x 0.35 Thread Forming Tap - HSSE V3 TiCN - Sutton Tools

Description

Sutton Thread Forming Tap - Multi Coolant Groove - N

Suitable for materials with >10% elongation
Through or blind holes
Depths up to 3 x d1

Specifications

Designation: N (for normal general-purpose type materials)
Material: Premium Grade High-Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Fluteless - Multi Coolant Groove
Standard: DIN2174
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Aluminum & Magnesium, wrought alloy - Non-Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0131588

Brand Sutton Tools

Model Number T3190160

Barcode Number 9311963500089

Type Thread Forming Tap

System of Measurement DIN2174

Thread Form Metric ISO Coarse (M)

Material HSSE V3

Finish TiCN

Lead Form C / 3 x P

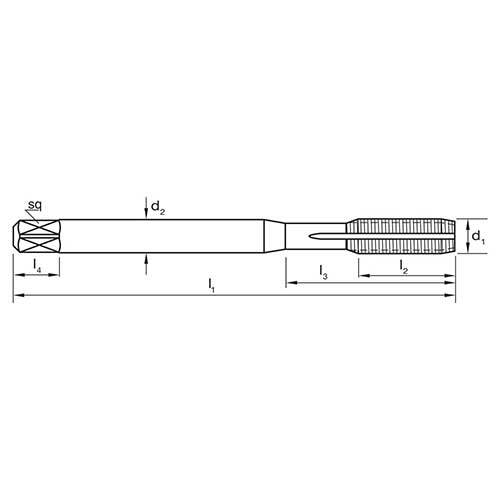

L1 (mm) 40

Drill Size (mm) 1.45

Item Type Fluteless - Multi Coolant Groove

Pitch Size (mm) 0.35

X als

Square Size (mm) 2.1

Nut Tolerance 6HX

Max Cut Depth 3xD

Shank Form A

Order Multiple 1

Diameter Size d1 (mm) M1.6

Sutton Designation N

L4 (mm) 3

L2 (mm) 7

Limit 6HX

Shank d2 (mm) 2.5

Group Code T319
