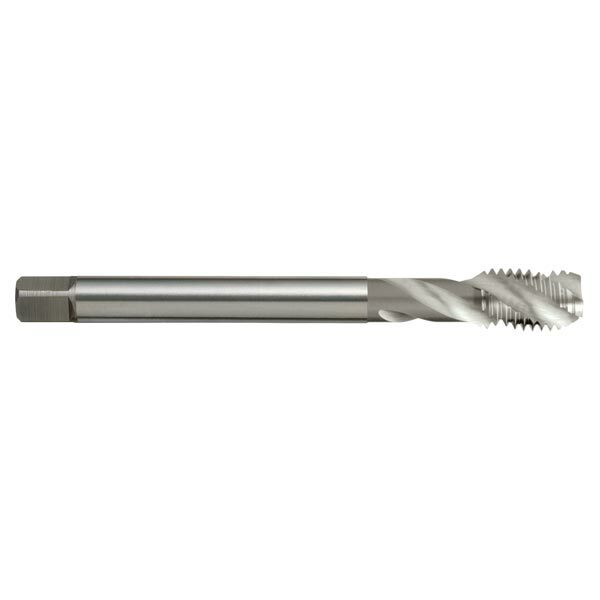

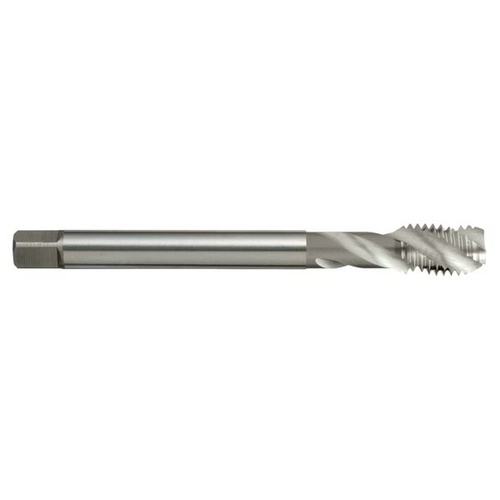

Sutton T188 Metric Spiral Flute Tap - R40 N - Premium HSS - Sutton Tools

Description

Features

General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to 2.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 2.5xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat TreatableAluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications

AIMS SKU A0013496

Brand Sutton Tools

Model Number T1882400

Barcode Number 9311963419299

Shank (mm) 18

L1 (mm) 160

Pitch (mm) 3

Drill Size (mm) 21

L2 (mm) 30

Square Size (mm) 14.5

Diameter (metric) M24

L4 (mm) 17

z 4

Group Code T188
Thread Form ISO Metric Coarse (M)
System of Measurement DIN376
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form C / 3 x P
Helix Angle R40
Application N (for normal general purpose type materials)
Tap Type Spiral Flute
Shank Form Reduced Shank (with square drive)
Nut Tolerance ISO 2 / 6H
Max Cut Depth 2.5xD
