Description

Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Through holes
  • Suitable for machine operations
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal and general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN5156
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: ISO 228
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - High alloy, cast & tool: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

  • AIMS SKU A0013432
  • Brand Sutton Tools
  • Model Number T1800973
  • Barcode Number 9311963169750
  • TPI 28

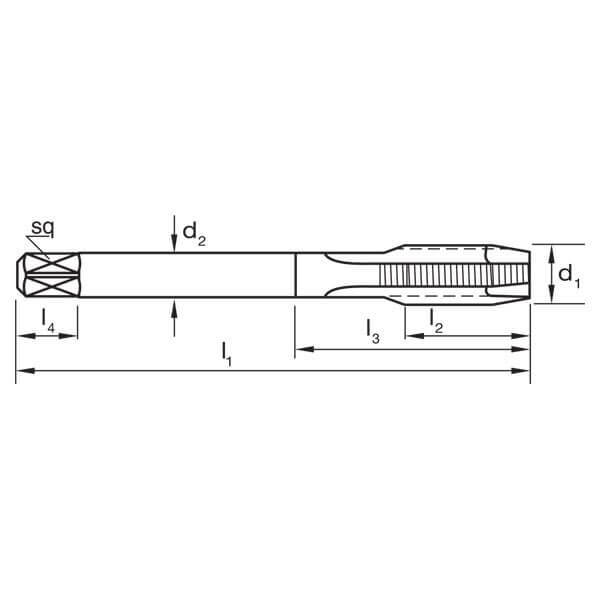

  • Shank (mm) 7
  • L1 (mm) 90
  • Diameter G1/8
  • Square Size (mm) 5.5
  • Z 3
  • L4 (mm) 8
  • Drill Size (mm) 8.8
  • L2 (mm) 20
  • Group Code T180
  • Thread Form ISO G Parallel Series 55° (G-BSPF)
  • System of Measurement DIN5156
  • Material Premium Grade High Speed Steel (HSSE-V3)
  • Finish Titanium Nitride (TiN)
  • Lead Form B / 4.5 x P
  • Application N (for normal and general purpose type materials)
  • Tap Type Spiral Point (Gun)
  • Shank Form Reduced Shank (with square drive)
  • Nut Tolerance ISO 228
  • Max Cut Depth 3xD
SKU: A0013432

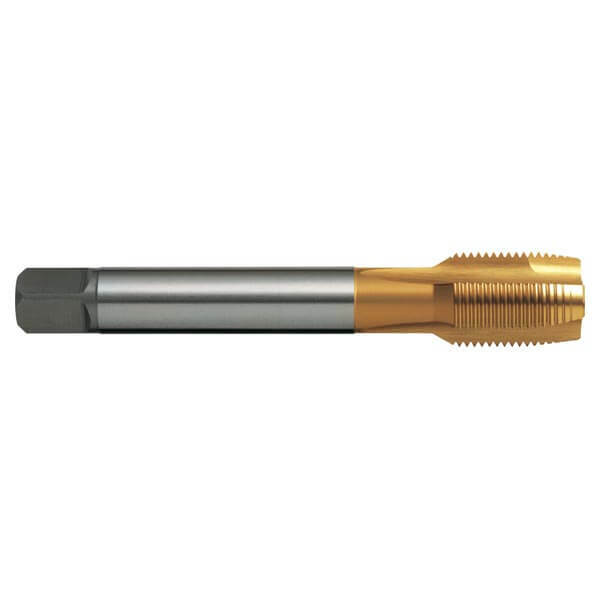

Sutton T1800973 BSPF G 1/8 x 28 Spiral Point Tap - HSSE V3 TiN

Suttons Spiral Point (Gun) Taps - N

$101.40
