Sutton M603S15 Easy-Out Screw Extractor Set - 5 piece - #1-#5 - M4-M20
Available

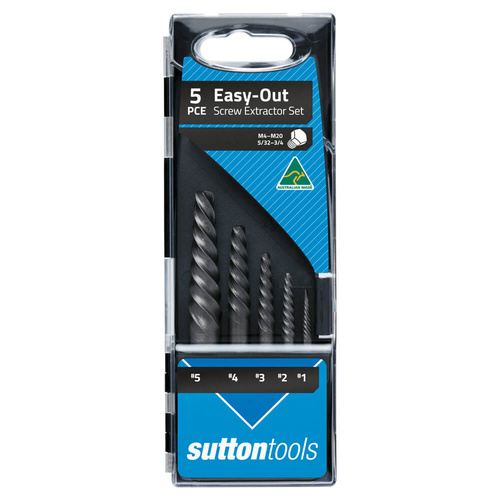

The Sutton M603S15 is a 5 piece screw extractor set: the #1 to #5 screw extractors, for broken screws and bolts from M4-M20 (5/32 to 3/4 in).
Designed to remove broken studs, bolts, socket screws and fittings. Made from chrome steel. The aggressive left hand spiral is designed for extra gripping power, and the spiral flutes are designed to embed themselves deeper, so the extractor's grip increases as the fastener resists. Choose the drill size for each extractor from the size table. Applications for the range include DIY, trade, automotive, plumbing, machine shop and MRO work.
Where this product is used
- Removing broken studs, bolts, socket screws and fittings.
- Automotive, plumbing and machine shop repairs where a fastener has broken off.
- DIY, trade and MRO work.
Design features
- Aggressive left hand spiral: for extra gripping power.
- Square end: hand operation in a variety of holders.
- Spiral flutes: designed to embed themselves deeper, so as fastener resistance increases the extractor's grip increases.
- Made from chrome steel.
What is in the set
The set contains the extractor sizes below. The drill size is the hole to drill before using the extractor.
| Size | Drill size (mm) | Metric screw / bolt size | Imperial screw / bolt size |
|---|---|---|---|
| #1 | 2 | M4-M5 | 5/32 - 3/16 in |
| #2 | 3 | M6-M8 | 7/32 - 1/4 in |
| #3 | 4 | M8-M10 | 5/16 - 3/8 in |
| #4 | 5.5 | M10-M14 | 3/8 - 1/2 in |
| #5 | 7.5 | M14-M20 | 9/16 - 3/4 in |
Using the screw extractor
- Drill a centred hole in the broken fastener with the drill size shown in the size table for the extractor you are using. Keep the drill square to the surface.
- Insert the extractor into the hole, fit a tap wrench or similar holder on the square end and turn it anticlockwise with steady pressure. The left hand spiral is designed to bite as the fastener resists.
- Do not force the extractor. One that breaks off in the hole is much harder to remove than the original fastener, so use a penetrating oil on seized fasteners and work steadily.
- Choose the extractor by the size of the broken screw or bolt, using the metric or imperial range in the size table.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | M603 S15 (screw extractor set) |
| Pieces | 5 |
| Extractors | #1 to #5 |
| Screw / bolt size range | M4-M20 (5/32 to 3/4 in) |
| Extractor material | Chrome steel |
| Spiral | Aggressive left hand spiral flutes |
Related products
Other Sutton screw extractors: M600 carded screw extractors, M601 telepack screw extractors, M602 extractor and stub drill sets, M603 S15A 6 piece set, M603 S20 10 piece set with right hand drills and M603 S20L 10 piece set with left hand cobalt drills. Left hand cobalt jobber drills for drilling out broken bolts: D202 left hand jobber drill and D202 10 piece left hand set. Browse all screw extractors.
