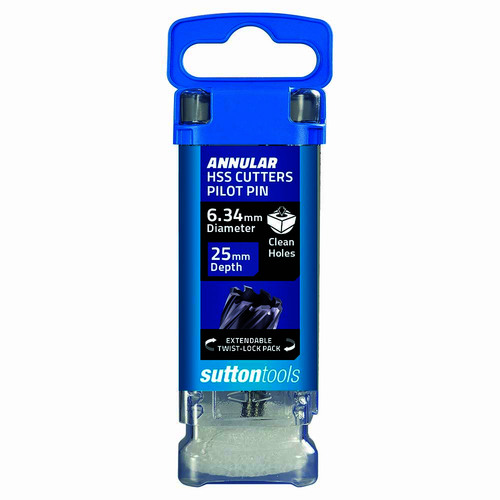

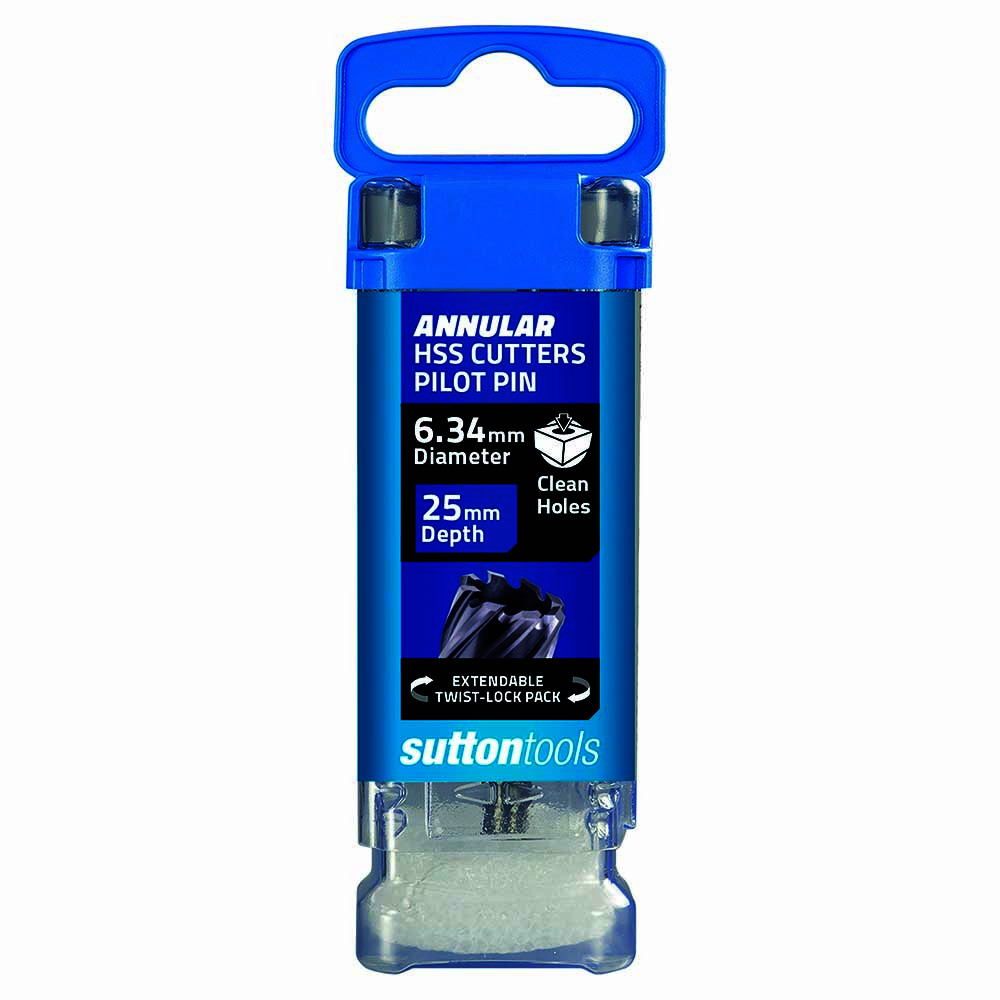

Sutton H1800063 Pilot Pin 6.34 x 77mm - HSS, Suits H180 Annular Cutters

The Sutton H1800063 (H180 0063) is a 6.34 x 77 mm pilot pin made from HSS, for the H180 annular cutters with a 25 mm cutting depth. It is a replacement pin for a magnetic base drilling machine cutter.

The pilot pin locates the annular cutter on the hole position and is a wear part, so it is replaced when it is worn or bent. The H1800063 pin has a diameter of 6.34 mm and a length of 77 mm.

Where this product is used

• Replacement pilot pin for the Sutton H180 annular cutters (25 mm cutting depth).
• Magnetic base drilling machine work in steel plate and structural sections.
• Applications include steel fabrication, structural steel, plate work, metalworking, maintenance and MRO work.

Design features

• 6.34 x 77 mm pilot pin, HSS.
• Suits the H180 annular cutters, 25 mm cutting depth.
• Replacement part: sold separately from the cutters.

Fitting the pin

• Check the pin is the one for this cutter series: H1800063 for the H180.
• Replace the pin when it is worn, bent or loose.

Key specifications

Related products

Cutters for this pin: H180 annular cutters (25 mm cutting depth).
