Sutton H4510752 T-Shank Jigsaw Blade Metal General Purpose 75mm 13 TPI 2 Pack
Available

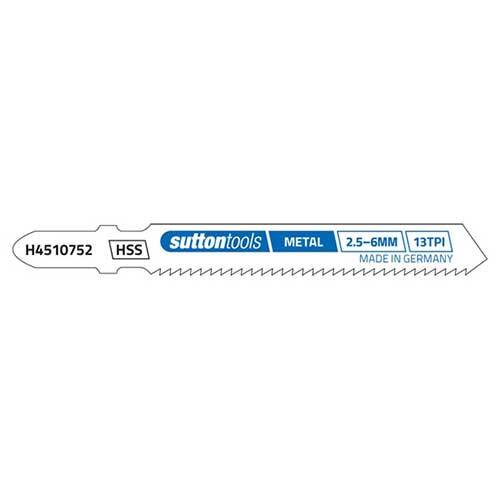

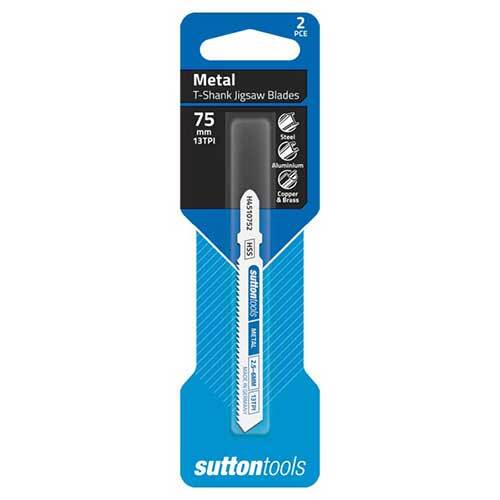

The Sutton H4510752 is a 75 mm T-shank jigsaw blade for cutting metal. It has a 55 mm cutting length, 13 TPI, is 1.0 mm thick and 7.8 mm tall, and is supplied as a 2 pack.
It is suitable for cutting steel, non-ferrous metal and aluminium (2.5-6.0 mm). Sutton's cut-type rating for this blade is clean cut.
Sutton jigsaw blades have a T-shank, and Sutton states they suit jigsaws from AEG, Black & Decker, Bosch, DeWalt, Festool, Hitachi, Makita, Metabo, Milwaukee and Ryobi. For Black & Decker, Makita and Ryobi, this applies to new models only. The blade is made in Germany. Blade lengths are overall (O/A) lengths; the cut length is the usable length of the toothed edge.
Where this blade is used
- Cutting mild steel, aluminium and non-ferrous plate and section
- Maintenance, fabrication and plumbing cut-outs in thicker metal
- General metal cutting with a jigsaw on site
Design features
- Teeth milled and wavy set for fine, clean cuts
- Hardened high speed steel (HSS) for cutting hard materials like metal, aluminium and non-ferrous metal
- 13 TPI tooth pitch for 2.5-6.0 mm material
- T-shank fitting for jigsaws
- Made in Germany
Dimensions
Overall length is measured end to end including the shank. Cut thickness is the workpiece thickness Sutton gives for the blade.
| Item no. | Overall length (mm) | Cut length (mm) | TPI | Thickness (mm) | Height (mm) | Cut thickness | Pack |
|---|---|---|---|---|---|---|---|
| H4510752 | 75 | 55 | 13 | 1.0 | 7.8 | 2.5-6.0 mm | 2 pack |
Key specifications
| Specification | Detail |
|---|---|
| Brand | Sutton |
| Item number | H4510752 |
| Type | T-shank jigsaw blade |
| Blade material | HSS (hardened high speed steel) |
| Tooth pitch | 13 TPI |
| Overall length | 75 mm |
| Cut length | 55 mm |
| Blade thickness | 1.0 mm |
| Blade height | 7.8 mm |
| Cut thickness | 2.5-6.0 mm |
| Cut type | Clean cut |
| Pack quantity | 2 |
| Shank | T-shank |
| Country of origin | Germany |
Related Sutton jigsaw blades
Compare other blade types: H4480752 75mm Sheet Metal General Purpose Jigsaw Blade, 21 TPI, H4531002 100mm Metal Aluminium Jigsaw Blade, 8.5 TPI, H4470752 75mm Sheet Metal General Purpose Jigsaw Blade, 36 TPI, H4541302 130mm Metal Profile Jigsaw Blade, 25 TPI, H490 multi-purpose jigsaw blade set (5 piece).
