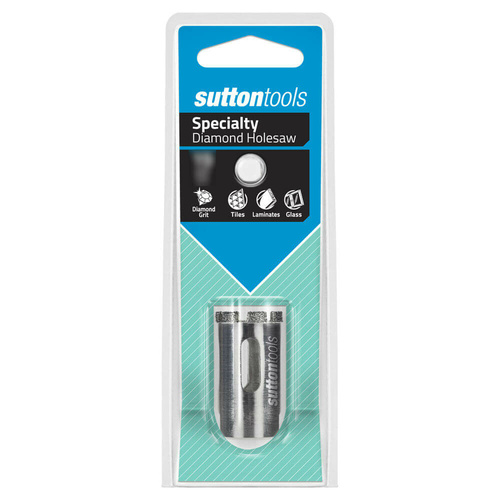

Sutton 19mm H115 Diamond Holesaw - 25mm Cutting Depth - 1/2 UNF Thread
Available
The Sutton H115 is a diamond grit holesaw with a 25 mm cutting depth. The range has 15 sizes from 19 to 105 mm. It is designed to cut ceramic and porcelain tiles, marble and soft stone, fibre cement and fibreglass, hard plastics and plexiglass.
The diamond coating is designed for long life in the hardest tiles, and the cut-out slots dissipate heat and let the plug come away easily. The thread follows the international standard, so the holesaw fits all standard arbors. Arbors and pilot drills are sold separately: DA01 arbor and PD01 pilot for the 19 to 29 mm sizes, DA02 arbor and PD02 pilot for 32 mm and larger.
Where this product is used
- Cutting holes in ceramic and porcelain tiles, marble and soft stone, fibre cement and fibreglass, hard plastics and plexiglass.
- Tap, waste, spigot and cable holes in wall and floor tiles and in fibre cement sheet.
- Applications include DIY, trade, plumbing, tiling, masonry, pools and spas, and boat building.
Sizes and item numbers
Every size in the range with its Sutton item number. The cutting depth is 25 mm on every size.
| Item no. | Diameter (mm) | Diameter (in) | Thread | Arbor | Pilot drill |
|---|---|---|---|---|---|
| H115 0190 | 19 | 3/4 | 1/2 UNF | DA01 | PD01 |
| H115 0220 | 22 | 7/8 | 1/2 UNF | DA01 | PD01 |
| H115 0250 | 25 | 1 | 1/2 UNF | DA01 | PD01 |
| H115 0290 | 29 | 1-1/8 | 1/2 UNF | DA01 | PD01 |
| H115 0320 | 32 | 1-1/4 | 5/8 UNF | DA02 | PD02 |
| H115 0350 | 35 | 1-3/8 | 5/8 UNF | DA02 | PD02 |
| H115 0380 | 38 | 1-1/2 | 5/8 UNF | DA02 | PD02 |
| H115 0440 | 44 | 1-3/4 | 5/8 UNF | DA02 | PD02 |
| H115 0510 | 51 | 2 | 5/8 UNF | DA02 | PD02 |
| H115 0540 | 54 | 2-1/8 | 5/8 UNF | DA02 | PD02 |
| H115 0640 | 64 | 2-1/2 | 5/8 UNF | DA02 | PD02 |
| H115 0760 | 76 | 3 | 5/8 UNF | DA02 | PD02 |
| H115 0920 | 92 | 3-5/8 | 5/8 UNF | DA02 | PD02 |
| H115 1020 | 102 | 4 | 5/8 UNF | DA02 | PD02 |
| H115 1050 | 105 | 4-1/8 | 5/8 UNF | DA02 | PD02 |
Using the holesaw
- Run the holesaw with a constant flood of water. Water prolongs cutting life, and overheating destroys the diamond bond.
- Fit a TCT pilot drill: PD01 (8 x 63 mm) with the DA01 arbor for 19 to 30 mm, PD02 (8 x 69 mm) with the DA02 arbor for 32 mm and larger.
- Start at a low speed and keep the pressure light and steady. Use a drill guide on smooth tile so the holesaw does not wander at the start.
- Wear eye protection and a dust mask suited to the material when cutting fibre cement, stone or tile.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | H115 |
| Type | Diamond grit segmented holesaw |
| Cutting edge | Diamond coating, with cut-out slots |
| Cutting depth | 25 mm |
| Sizes in this range | 15 sizes, 19 to 105 mm |
| Thread | 1/2 UNF (19 to 29 mm), 5/8 UNF (32 to 105 mm) |
| Arbor | DA01 (19 to 29 mm), DA02 (32 to 105 mm), sold separately |
| Pilot drill | PD01 (19 to 29 mm), PD02 (32 to 105 mm), sold separately |
| Cooling | Constant flood of water |
Related products
Also available: the H1150007 five piece and H1150011 eight piece diamond holesaw sets, the H115 DA01 and DA02 arbors, PD01 and PD02 pilot drills and DG35 and DG70 drill guides. For wood, plasterboard and fibre cement see the H127 multi-purpose TCT holesaw. Browse all hole saws and accessories. Our hole saw guide covers sizes, arbors and pilot drills.
