Description

Descriptions

  • For roughing applications
  • HR geometry allows for heavy cuts, in harder materials

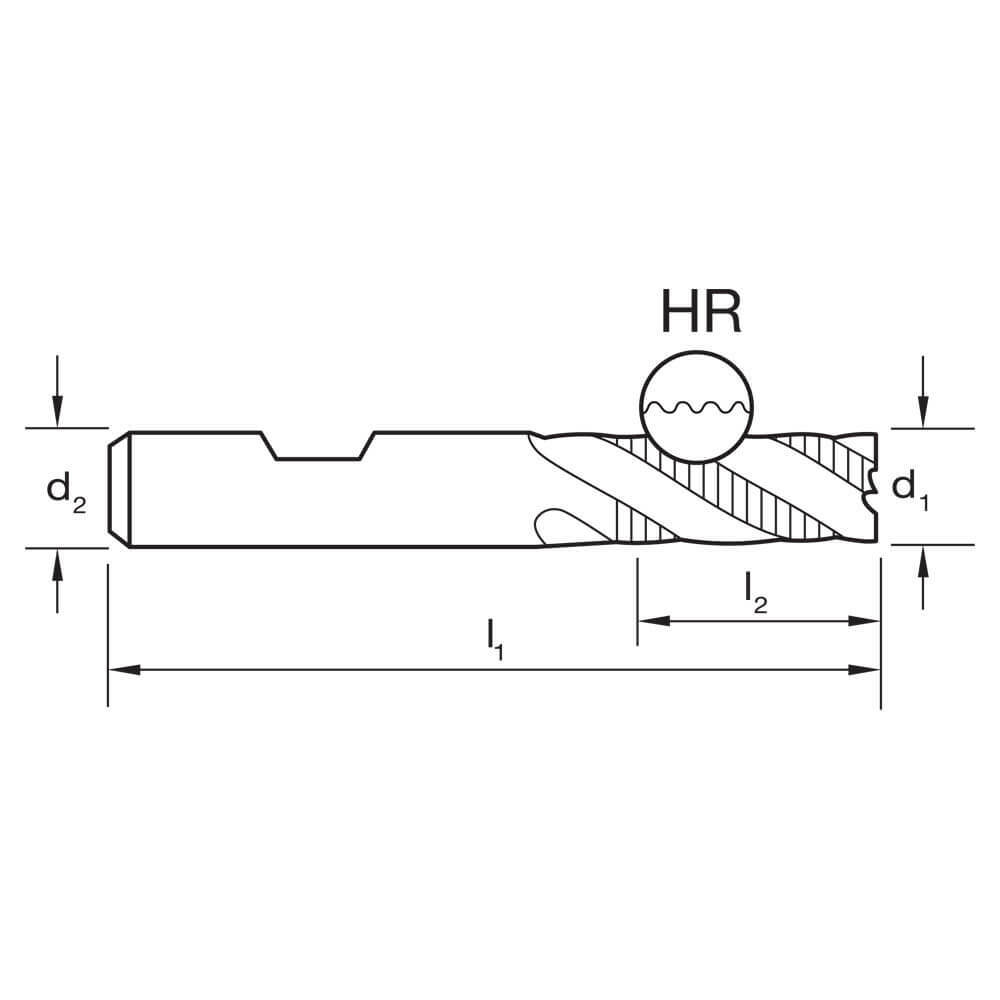

Dimensions

  • d1 (mm): 6
  • d2 (mm): 10
  • l1 (mm): 60
  • l2 (mm): 15
  • No. of Flutes: 3
  • Quantity: 1

Features

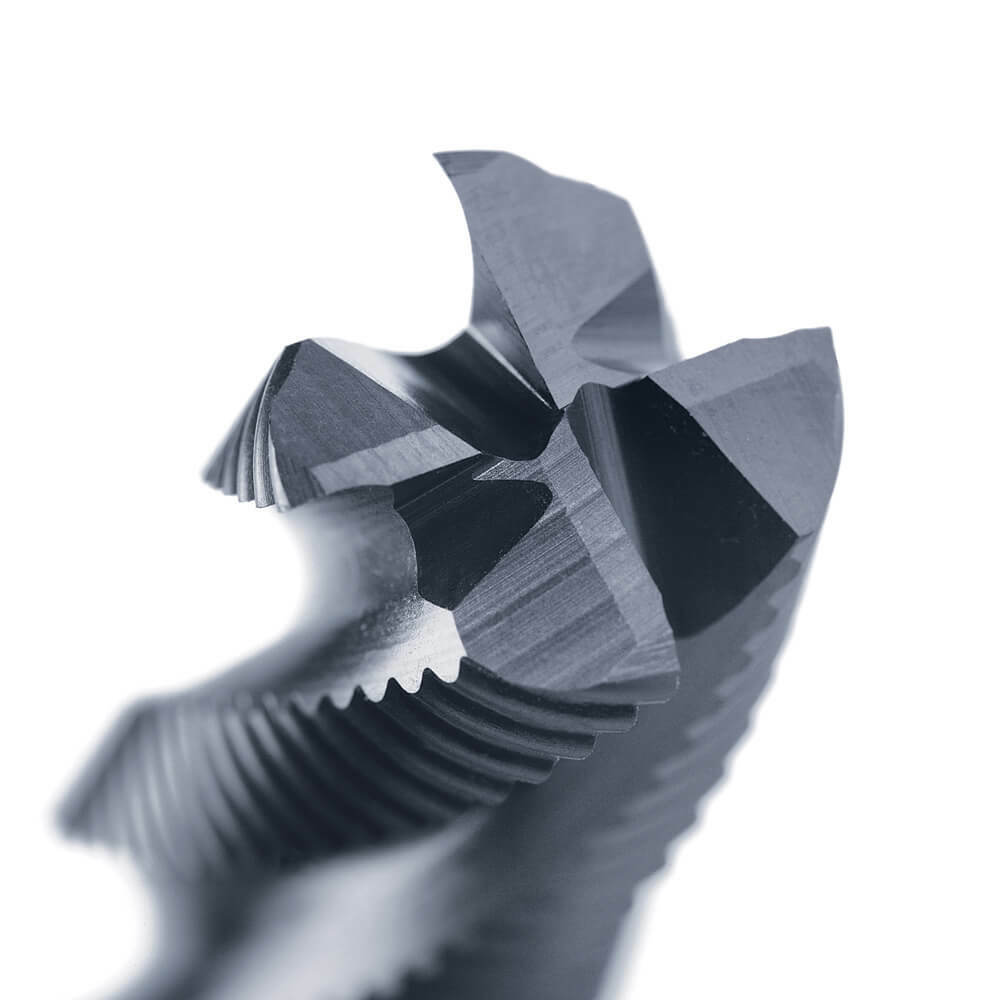

  • HR (fine) R30 NH Rougher Regular
  • Suitable for materials up to 1300 N/mm2
  • TiCN for longer tool life

Specifications

  • Designation: NH
  • Material: High Speed Steel Cobalt-8
  • Finish: TiCN
  • Shank Form: B
  • Helix Angle: R30
  • Point Tolerance: js14
  • Shank Tolerance: h6
  • Point Form: 45° Corner Chamfer
  • Type: HR (fine pitch)
  • Standard: JIS

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Steel - High alloy, cast & tool- 325 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic – 180 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Cast Iron, Malleable - Ferritic- 130 HB
SKU: A0009016

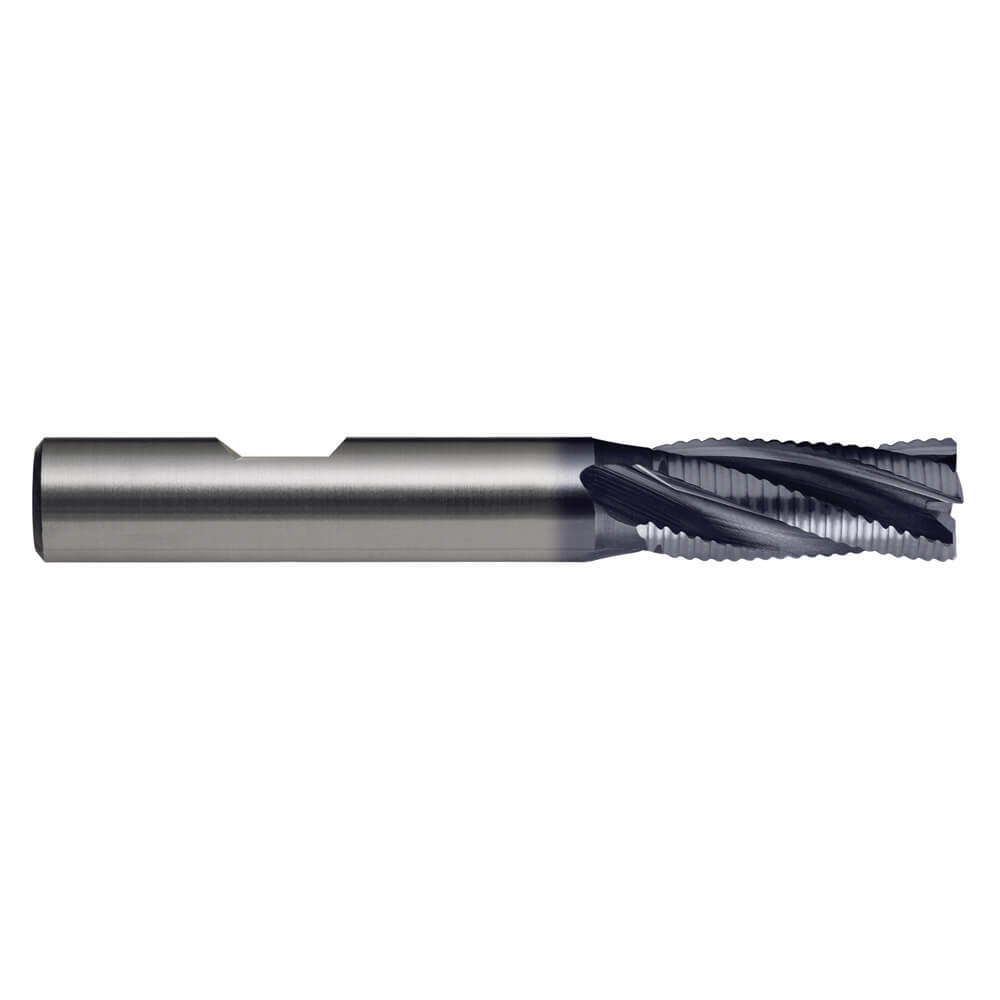

Sutton E1711600 16mm 4 Flute Roughing End mill - 8% Cobalt TiCN - Regular

Sutton Tools Roughers - HR (fine) - R30 NH - Regular

$174.38

How it works.

Make 4 payments of $43.59 over 8 weeks and get it now!


Buy now, pay later.

Specifications

  • AIMS SKU A0009016
  • Brand Sutton Tools
  • Model Number E1711600
  • Barcode Number 9311963196046
  • System of Measurement Metric
  • Material High Speed Steel Cobalt (HSSE Co8%)
  • Finish Titanium Carbonitride (TiCN)
  • Flutes 4 Flute
  • Profile 45 degree Corner Chamfer
  • Reach Long
  • Helix Angle R30
  • Size 16 mm
