Description

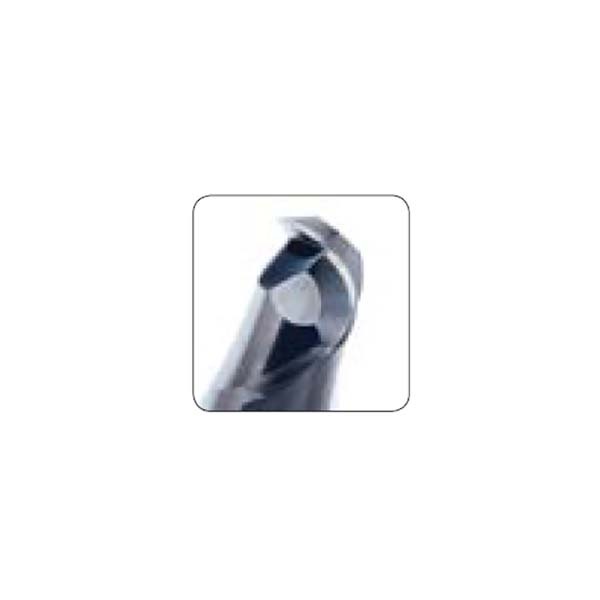

2 Flute Ball Nose Slot Drill - R30 UNI - Long Reach

  • For profile & contour milling in long-reach applications

Features

  • VHM-ULTRA grade of carbide for high performance
  • Suitable for materials up to 1600 N/mm2
  • AlCrN for longer tool life

Specifications

  • Designation: UNI
  • Material: VHM-ULTRA
  • Finish: AlCrN
  • Shank Form: HB
  • Helix Angle: R30
  • Shank Tolerance: h5

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-300HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-275HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-300HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-350HB
  • Optimal for Steel - High alloy, cast & tool-200HBOptimal for Steel - High alloy, cast & tool-325HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic-180HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic-260HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic-160HB
  • Optimal for Cast Iron, Nodular (GGG) - Pearlitic-250HB
  • Optimal for Cast Iron, Malleable - Ferritic-130HB
  • Optimal for Cast Iron, Malleable - Pearlitic-230HB
  • Optimal for High-temperature alloys - Fe based-280HB
  • Optimal for High-temperature alloys - Ni / Co-based-250HB
  • Optimal for High-temperature alloys - Ni / Co-based-350HB
  • Optimal for High-temperature alloys - Ni / Co-based-350HB
  • Optimal for High-temperature alloys - Ni / Co-based-320HB
  • Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
  • Optimal for Titanium & Titanium alloys - Beta alloys

Specifications

  • AIMS SKU A0130243
  • Brand Sutton Tools
  • Model Number E4410600
  • Barcode Number 9311963561417

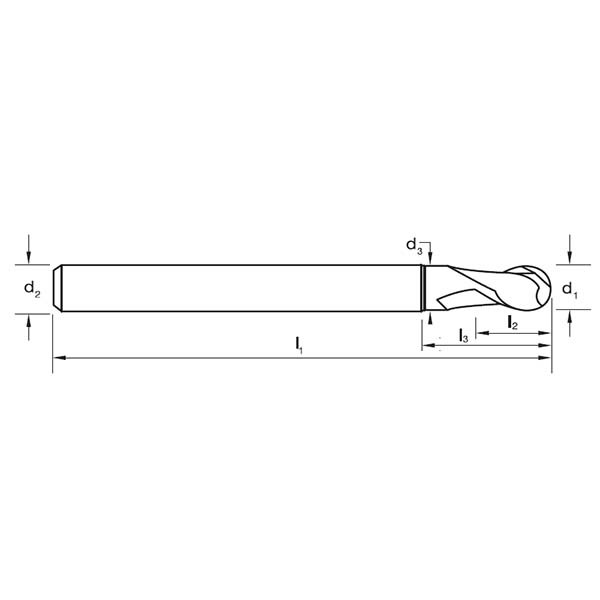

  • Cutting Tip (mm) 6
  • Overall Length (mm) 80
  • Shank (mm) 6
  • Flute Length (mm) 7
  • Reach Length L3 (mm) 17
  • Product Group B0210
  • D3 (mm) 5.7
  • Geometry R30
  • Shank Tolerance h5
  • Sutton Designation UNI
  • Point Tolerance e8
  • Shank Form HB
  • Type Ball Nose Slot Drill
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Aluminium Chromium Nitride (AlCrN)
  • Flutes 2
  • Group Code E441
SKU: A0130243

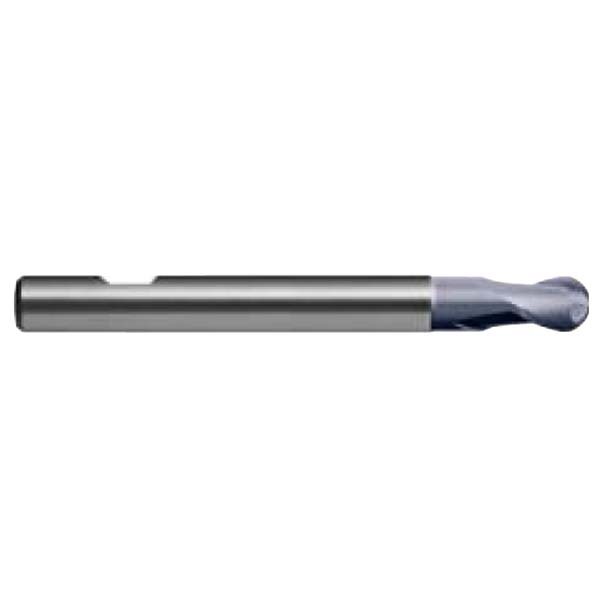

Sutton E4410600 6 x 80mm 2 Flute Ball Nose Slot Drill Carbide AlCrN Long HB

2 Flute Ball Nose Slot Drill - R30 UNI - Long Reach

$49.16
