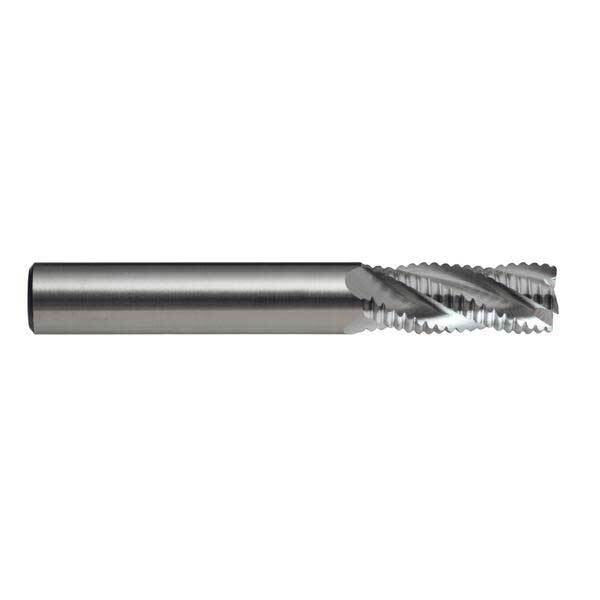

Sutton E1421400 14 x 16mm 4 Flute Roughing Endmill - 8% Cobalt - Regular - Sutton Tools

Description

Sutton Tools Roughers - NR (Normal) - R30 WN - Regular

For roughing applications
NR geometry allows for heavy cuts

Features

NR (normal) Rougher R30 WN
Suitable for materials up to 1000 N/mm2

Specifications

Designation: WN
Material: High Speed Steel Cobalt-8
Finish: Bright
Shank Form: A
Helix Angle: R30
Point Tolerance: js14
Shank Tolerance: h6
Point Form: 45° Corner Chamfer
Type: NR (coarse pitch)
Standard: JIS

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB

Specifications

AIMS SKU A0131172

Brand Sutton Tools

Model Number E1421400

Barcode Number 9311963196091

Type Rougher Endmill

System of Measurement JIS

Material HSS Co.8

Finish Bright (Brt)

Cutting Tip (mm) 14

Overall Length (mm) 90

Shank (mm) 16

Flute Length (mm) 35

Helix Angle R30

Item Type NR (coarse pitch)

Point Form 45° Corner Chamfer

Group Code E142

Point Tolerance js14

Shank Form A

Flute 4

Shank Tolerance h6

Sutton Designation WN
