Sutton E102 3.5mm Slot Drill 2 Flute - 8% Cobalt HSS - Long
Available

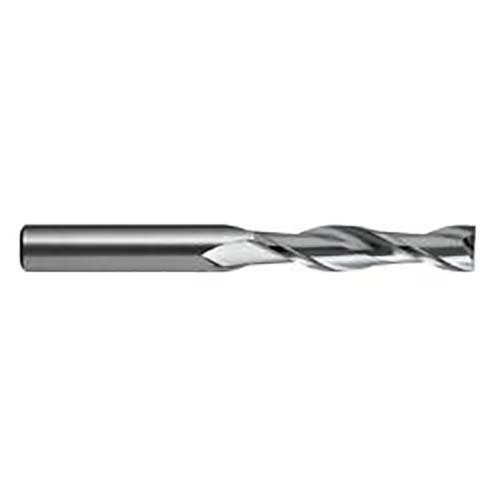

The Sutton E102 is a 2 flute slot drill made from 8% cobalt high speed steel (HSS Co.8), with a bright finish. It is in the long length series. This listing covers 10 metric sizes from 3.5 mm to 24 mm.
The cutting edge has an R30 helix and the designation is N. The shank is a plain cylindrical shank (DIN 1835 form A), with h6 shank tolerance and e8 cutting diameter tolerance.
Where this product is used
- Long-reach slotting in soft steels and non-ferrous materials, up to 1000 N/mm2.
- Plunging straight into the workpiece before slotting, because a slot drill cuts on its end face.
Design features
- 8% cobalt high speed steel (HSS Co.8) construction.
- Bright finish.
- 2 flutes, R30 helix.
- Plain cylindrical shank (DIN 1835 form A).
- Tolerances: cutting diameter (d1) e8, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E102 0350 | 3.5 | 60 | 20 | 6 | 2 |
| E102 0450 | 4.5 | 60 | 25 | 6 | 2 |
| E102 0550 | 5.5 | 65 | 25 | 6 | 2 |
| E102 0650 | 6.5 | 80 | 35 | 10 | 2 |
| E102 0700 | 7 | 80 | 35 | 10 | 2 |
| E102 0750 | 7.5 | 80 | 35 | 10 | 2 |
| E102 0850 | 8.5 | 95 | 45 | 10 | 2 |
| E102 0950 | 9.5 | 95 | 45 | 10 | 2 |
| E102 2200 | 22 | 140 | 75 | 20 | 2 |
| E102 2400 | 24 | 160 | 90 | 25 | 2 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E102 |
| Type | Slot Drill, 2 flute, long length |
| Material | 8% cobalt HSS (HSS Co.8) |
| Finish | Bright |
| Helix / geometry | R30 |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 1835 form A) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h6 |
| Sizes in this listing | 10 sizes, 3.5 to 24 mm |
Related products
Related Sutton slot drills: E102 imperial slot drill (long), E102 metric slot drill (long), E113 metric ball nose slot drill (long), E113 30 mm ball nose slot drill (long), E225 6 mm slot drill (long).
