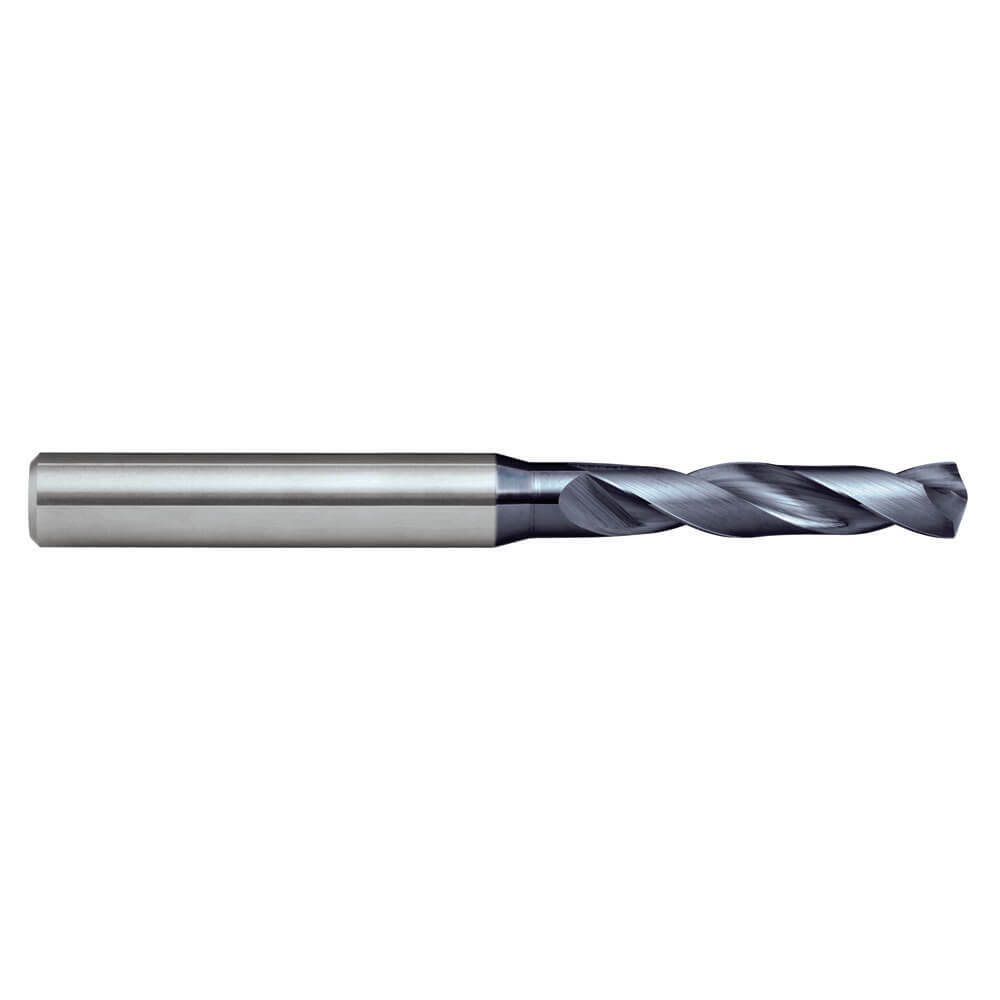

Sutton D323 2.2mm Carbide Drill Bit - 3xD - R30 N - VHM - AlCrN

Sutton Tools Carbide Bits - 3xD - R30 N


Unavailable
$36.18
$41.35
SAVE $5.17
View all variants Select a different variant of
Sutton D323 Carbide Drill Bit - 3xD - R30 N - VHM - AlCrN
Thread Diameter (mm)
Overall Length (mm)

Browse other products under:
Carbide Drill Bits
Browse other products by:
Sutton Tools

Descriptions

  • 3xD Drill R30 N
  • Suitable for materials up to 1400N/mm2

Features

  • Strong core
  • Micro geometry & surface conditioning for optimal chip control
  • AlCrN for maximum tool life

Specifications

  • Designation: N
  • Material: VHM
  • Finish: AlCrN
  • Maximum Cut Depth: 3XD
  • Shank Form: HA
  • Helix Angle: R30
  • X:als
  • Point Tolerance: m7
  • Shank Tolerance: h6

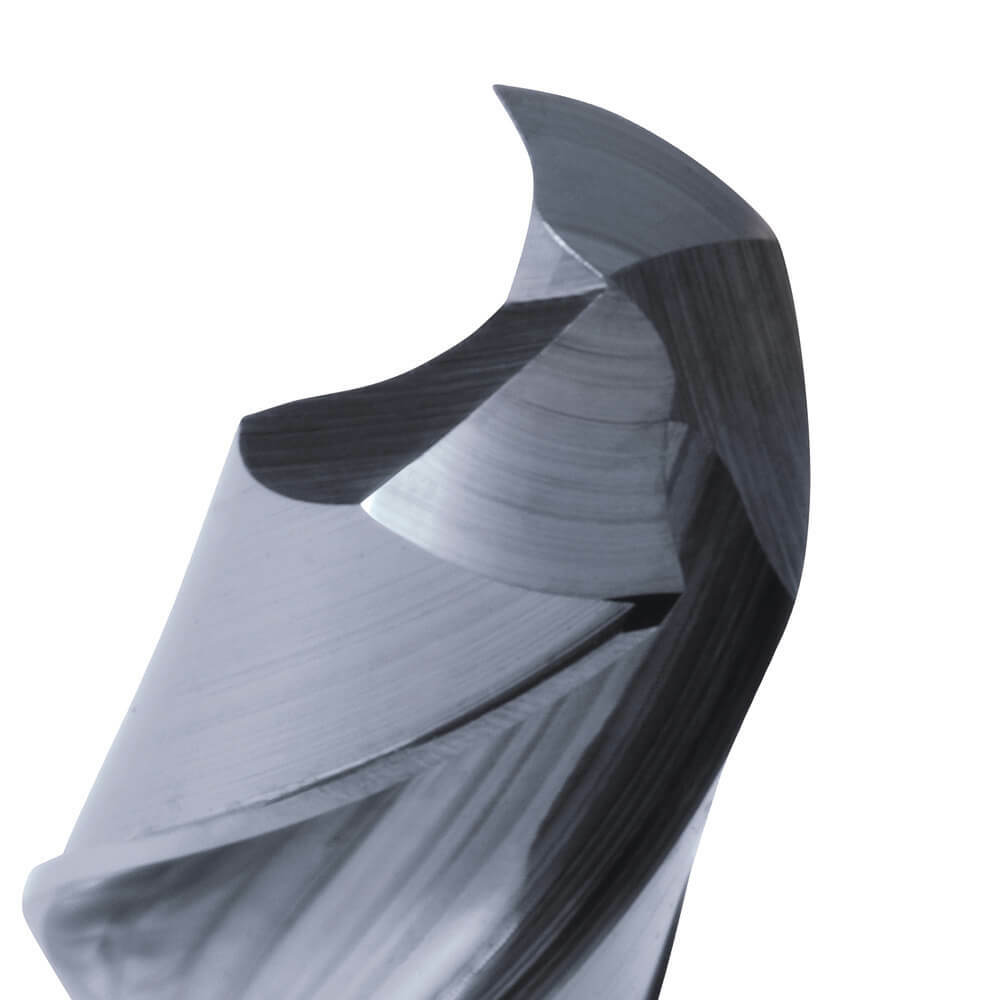

  • Point Type: 140° Form C
  • Cutting Edges: ul
  • Standard: DIN 6537

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Steel - High alloy, cast & tool- 325 HB
  • Optimal for Steel - Corrosion resistant & cast – Martensitic- 240 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Stainless Steel – Duplex- 250 HB
  • Optimal for Stainless Steel - Precipitation Hardening- 250 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic – 180 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Cast Iron, Malleable - Ferritic- 130 HB
  • Optimal for Hardened Steel- 45 HRC

AIMS SKU

A0007198

Brand

Sutton Tools

Model #

D3230220

Barcode #

9311963589145

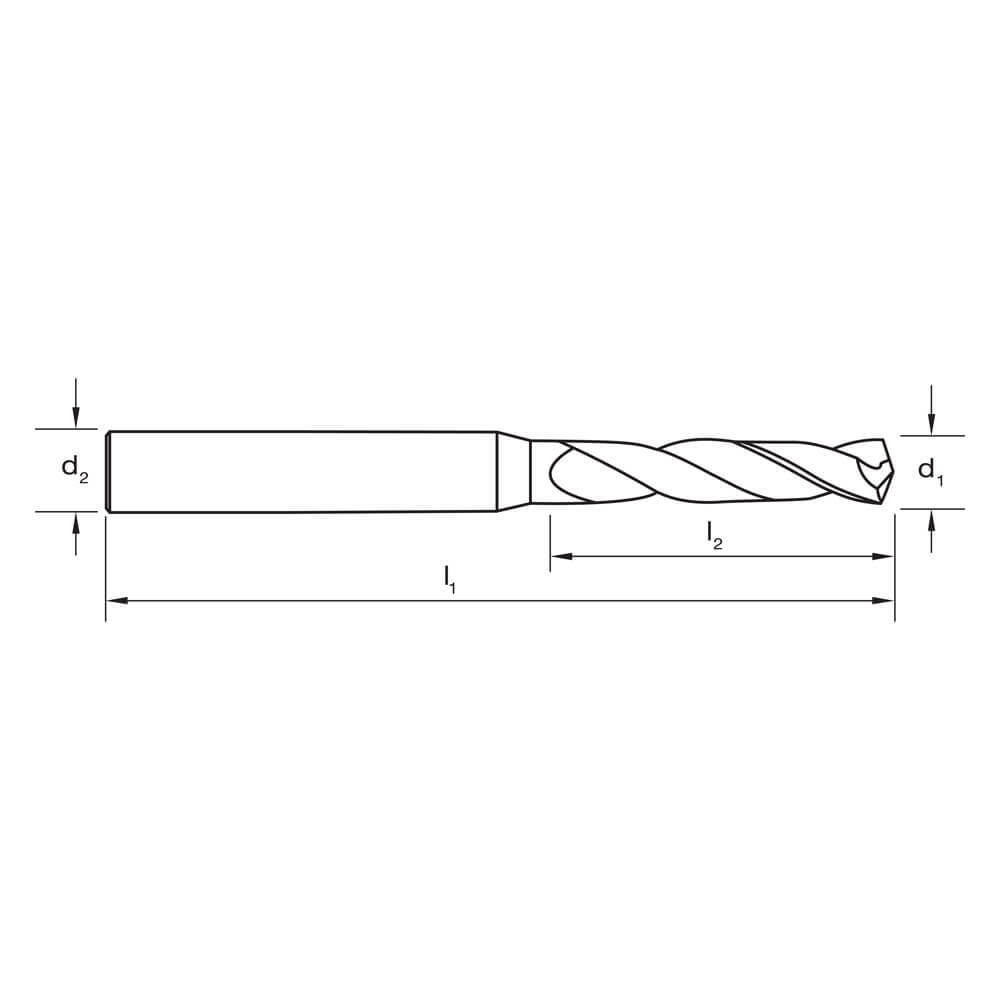

Thread Diameter (mm)

2.2

Overall Length (mm)

55

Shank (mm)

4

Flute Length (mm)

20

Group Code

D323

Product Type

Carbide Drill Bit

Standard

DIN 6537

Standard

Metric

Material

Sub-Micron Grade Solid Carbide (VHM-ISO K40)

Finish

Aluminium Chromium Nitride (AlCrN)

Helix Angle

R30

Shank Tolerance

h6

Shank Form

HA

Maximum Cut Depth

3XD

Point Tolerance

m7

Point Form

140 Form C
