Description

Descriptions

  • Industrial quality drill designed for machine and hand-held drilling in stainless steel, steel, aluminum, cast iron, brass, wood and plastic

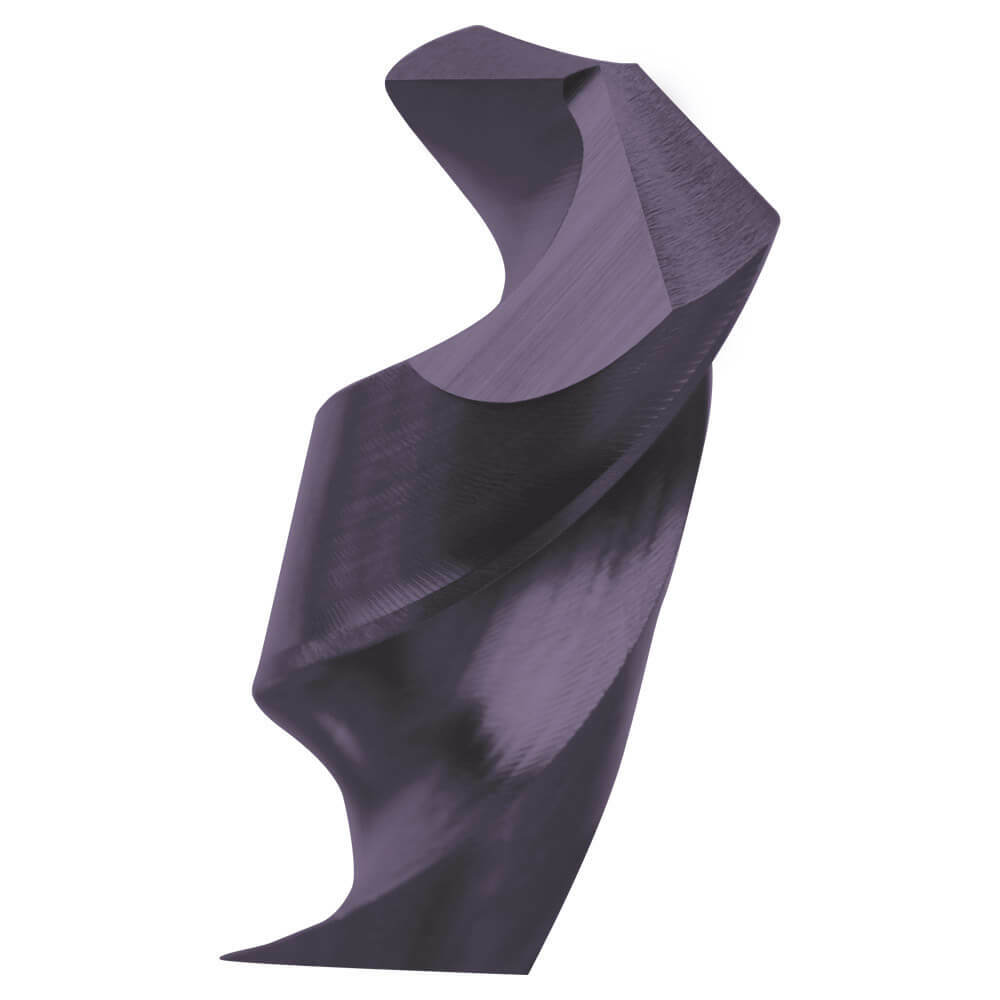

  • Featuring a Futura Nano PVD coated tip – the latest generation coating for ultimate wear resistance and increased productivity

Features

  • Independently tested to exceed 2X greater tool life
  • Futura Nano PVD coated tip for ultimate wear resistance
  • Specialized coating allows higher cutting speeds and greater productivity
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: TiAIN
  • Maximum Cut Depth: 5XD
  • Shank Form: A
  • Helix Angle: R30
  • X: als
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form C
  • Cutting Edges: ul
  • Standard: DIN 338

Specifications

  • AIMS SKU A0006434
  • Brand Sutton Tools
  • Model Number D1840650
  • Barcode Number 9311963600550
  • Thread Diameter (mm) 6.5
  • Overall Length (mm) 101
  • Flute Length (mm) 63
  • Group Code D184
  • Type Jobber Drill Bit
  • System of Measurement Metric,DIN 338
  • Material High Speed Steel (HSS)
  • Finish Titanium Aluminium Nitride (TiAIN)
  • Helix Angle R30
  • Shank Form A
  • Point Angle 118
  • Point Form C
  • Maximum Cut Depth 5XD
  • Point Tolerance h8
SKU: A0006434

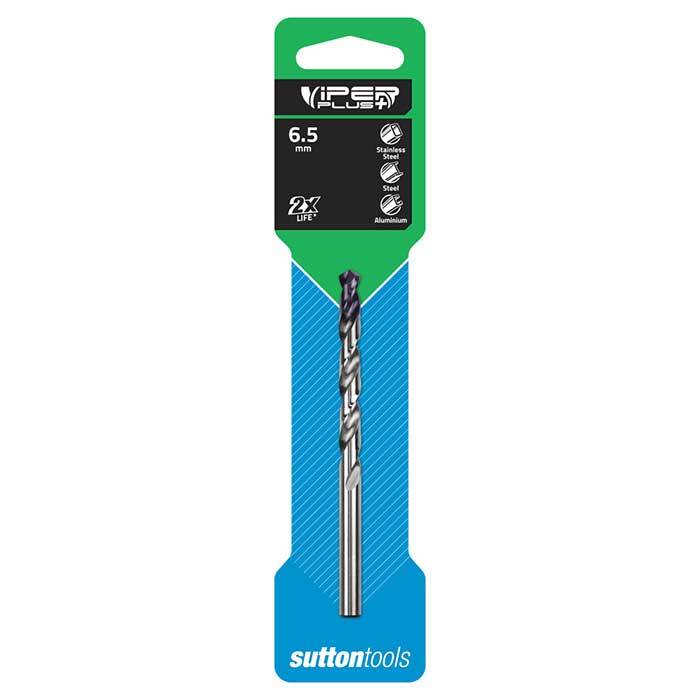

Sutton D1840650 6.5mm Jobber Viper Plus Drill Bit DIN338 Carded HSS TiAlN

Sutton Tools Jobber Drill Bits - Viper Plus

$9.97
RRP $16.18
SAVE $6.21 (38%)
